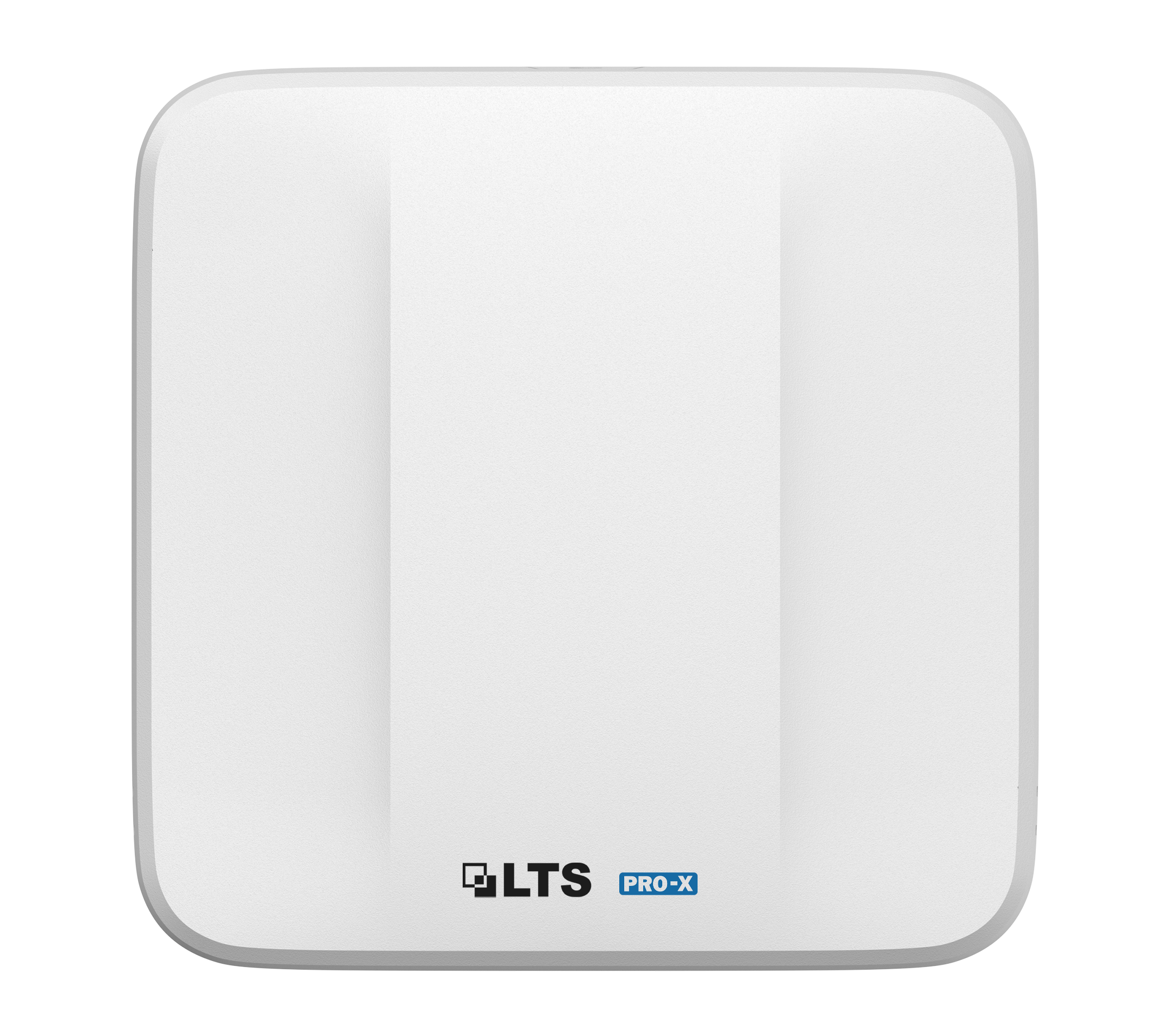

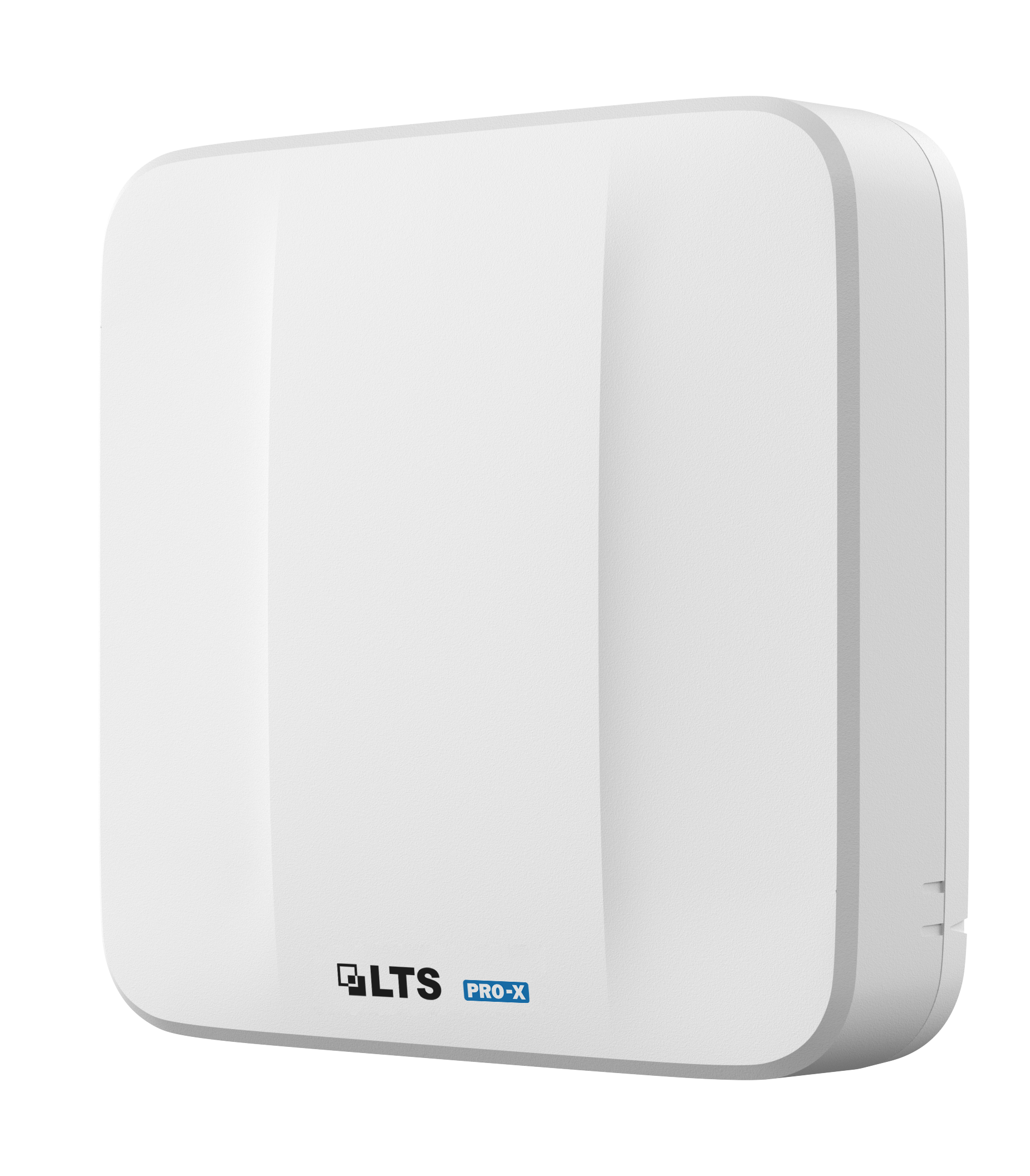

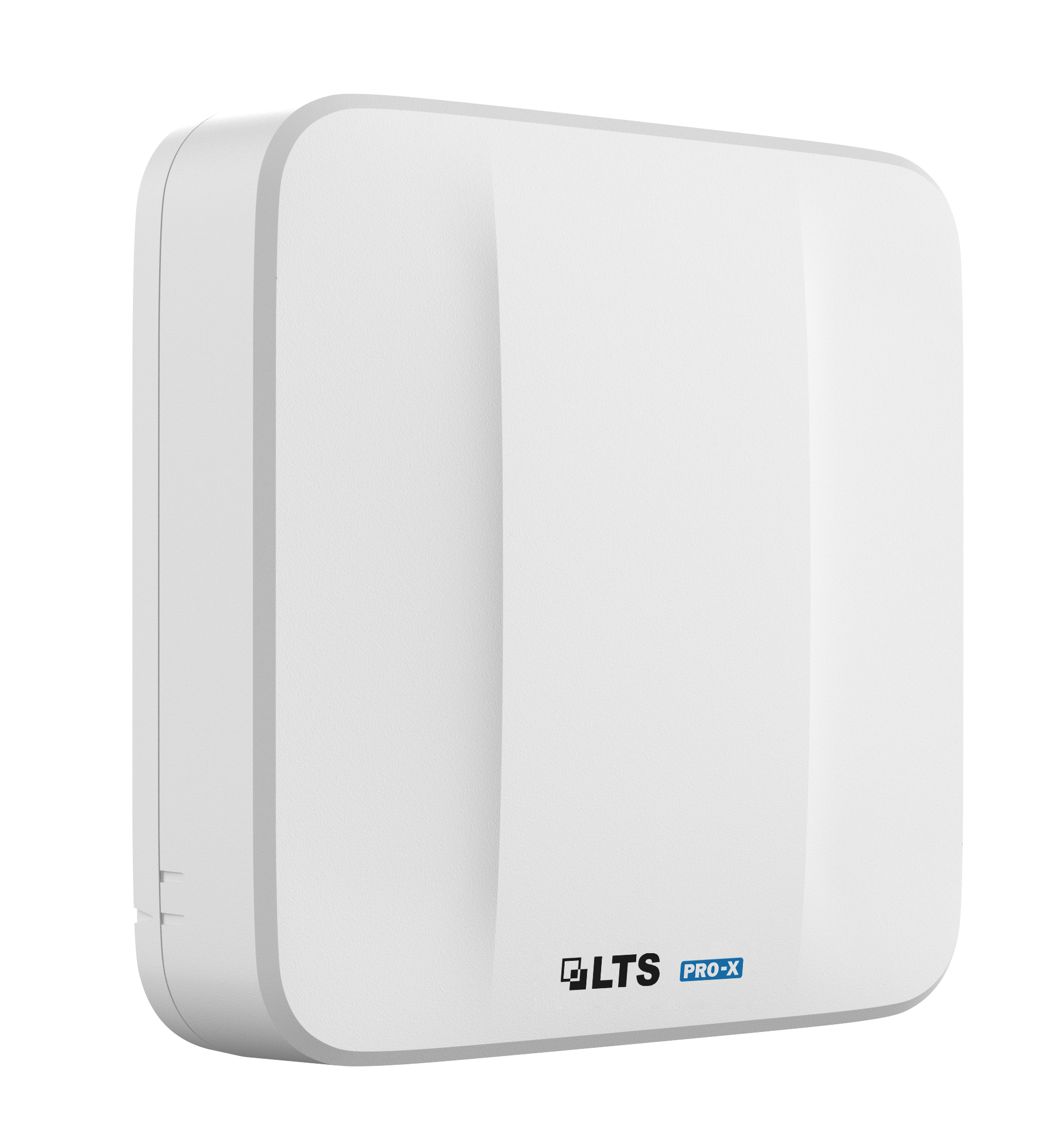

【PRO X】 LXKW302-40, 2-Door Web Access Controller

• Work in main controller mode or sub controller mode with easy escalation of 20 controllers in total, managing maximum 40 doors
• Main controller system capacity supports 1000 users, 5000 cards, 3000 fingerprints, and 300,000 records
• Multiple verification methods including card, password, Bluetooth, fingerprint, and a combination of the above-mentioned.
• Built of flame-retardant PC and ABS material, it is both sturdy and elegant with an IK06 rating
• Communication with access card readers through Wiegand and RS-485 protocols
• Supplies power to locks through its 12 VDC output power supply with a maximum output current of 1000 mA
• Supports multiple types of alarm events including duress, tampering, intrusion, unlock timeout, and illegal card
• Supports multiple types of users including general, manager, guest, Blocklist, and more
• Retains stored data even while powered off
• Supports access management and configuration on webpage with the help of built-in server
• Features main and sub-control modes. The main control mode offers user management, access control device management and configuration, and more options. Devices under sub-control modes can be added to multiple platforms
• Watchdog protects the system to allow the device to be stable and perform efficiently
• Subcontrollers can be added to and managed by software platforms.
