Video/Audio Input
IP Video Input	32-CH, Up to 12MP Resolution
Two-Way Audio Input	1-CH, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming Bandwidth	256Mbps
Outgoing Bandwidth	256Mbps
Remote Connection	128
Video/Audio Output
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output	4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1-ch, resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output	1-CH, RCA (Linear, 1kΩ)
Decoding
Live View/ Playback Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-CH
Capability	4-ch @ 4K, or 16-ch @1080p
Hard Disk
Capacity	Up to 8TB for Each Disk
External Interface
Serial Interface	1 RS-485 (Half-Duplex), 1 RS-232
Alarm In/Out	16 In/4 Out
General
Power Supply	100~240V AC
Consumption	≤20W
Working Temperature	+14ºF ~ +131 ºF(-10ºC ~ +55ºC)
Working Humidity	10% - 90%
Casing	19-Inch Rack-Mounted 1.5U Casing
Dimension	17.5"× 15.3" × 2.8"(445 × 390 ×70 mm)
Weight	≤11lb (5Kg)

Sign In For Price

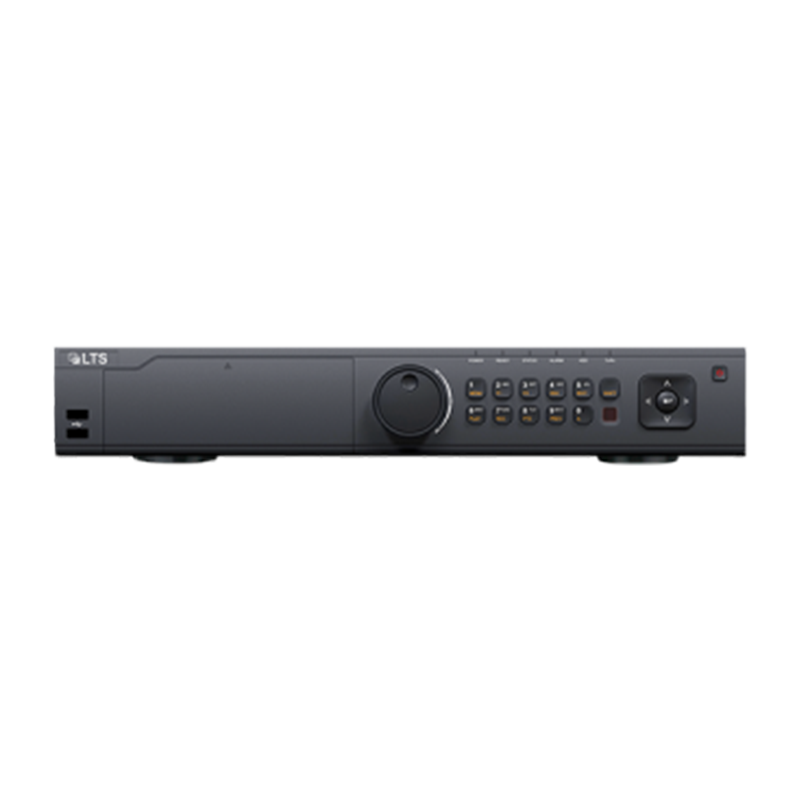

【LTS】 LTN8932, Platinum Enterprise Level 32 Channel 4K NVR, 1.5U, SATA up to 24TB, No Pre-Installed Storage
