Camera
Image Sensor:	1/3" sensor
Min. Illumination:	0.028 lux@F2.0, AGC ON 0 lux with IR
Shutter time:	1/25s ~ 1/100,000s
Lens:	4.0mm @F2.0 1280 × 960: angle of view: 73.1°
Lens Mount:	M12
Angle adjustment	Pan: 0° ~ 355°, tilt: 0° ~ 65°
Digital noise reduction	3D DNR
Wide dynamic range	Digital WDR
Day& Night:	ICR
Compression Standard
Video Compression:	H.264 /MJPEG
H.264 codec profile	Main profile
Bit Rate:	32 Kbps ~ 16 Mbps
Dual stream	Yes
Max. Image Resolution:	1280x960
Frame Rate:	60 Hz: 30 fps (1280 × 960), 30 fps(1280 x 720) 50 Hz: 25 fps (1280 × 960), 25 fps(1280 x 720)
Image Settings:	Saturation, brightness, contrast adjustable through client software or web browser
BLC:	Yes, zone configurable
Network
Network Storage:	NAS (iSCSI optional)
Alarm Trigger:	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols:	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
Security:	User authentication, watermark
System Compatibility:	ONVIF, PSIA, CGI
General functionalities	Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface:	1 RJ45 10M / 100M ethernet interface
General
Operating Conditions:	-13°F ~ 140°F (-25°C ~ 60°C) humidity 95% or less (non-condensing)
Power Supply:	12 VDC ± 10%, PoE (802.3af)
Power Consumption:	Max. 5.5W
Impact protection	IEC60068-275Eh, 50J; EN50102, up to IK10
Weather Proof:	IP66
IR Range:	Approx 65 to 100 ft(About 2 0m)
Dimensions:	Φ 4.4”× 3.2”(111 × 82 mm)
Weight:	1.1lb(500g)

Sign In For Price

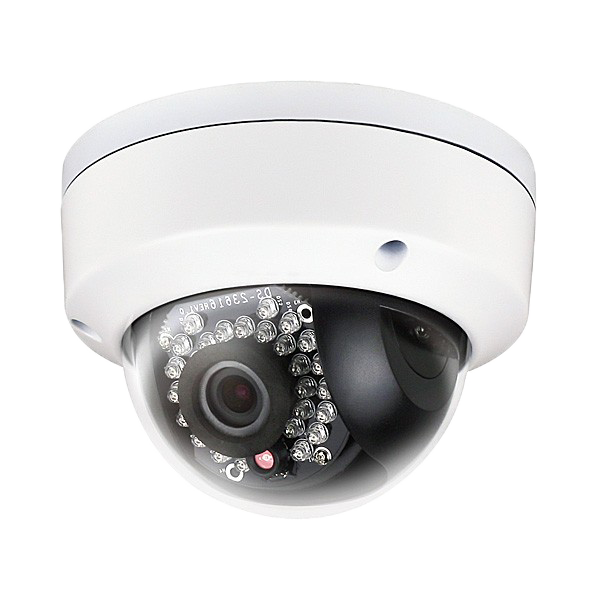

【LTS】 LTCMIP3412,Platinum Fixed Lens Dome IP Camera,1.3MP,4mm
