VSIP3182W-28
Camera
Sensor	1/3", 8.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
DORI Distance	Lens		Detect(m)		Observe(m)	Recognize(m)		Identify(m)
	2.8mm		84		33.6	16.8		8.4
	4.0mm		120		48	24		12
Angle of view(H)	112.7°
Angle of View (V)	60.1°
Angle of View (O)	146.5°
Shutter	Auto/Manual, 1~1/100000 s
Adjustment angle	Pan: 0°~360°			Tilt: 0°~80°			Rotate:0°~360°
Min. Illumination	Colour: 0.05 Lux (2.0, AGC ON) 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>56dB
IR Range	Up to 30m (98 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline Profile, Main Profile
Frame Rate	Main Stream:8MP (38402160): Max. 20 fps;5MP(29441656): Max. 30 fps; 4MP(25601440): Max. 30 fps; 2MP(19201080): Max. 30 fps Sub Stream:720P (1280720): Max. 20 fps Third Stream:4CIF (704576): Max. 20 fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
White Balance		Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction		2D/3D DNR
Smart IR		Support
Flip		Normal/Vertical/Horizontal/180°
Dewarping		NA
HLC		Supported
BLC		Supported
Smart
Behavior Detection	Human Body Detection
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS
Compatible Integration	ONVIF (Profile S+ Profile T), API
Client	LTS PRO-VS Station
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
	Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network	10/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power	12 V DC±25%, PoE (IEEE802.3 af)
	Power consumption: Max 5W
Dimensions (Ø x H)	Φ118×96mm (Φ4.6”×3.8”)
Net Weight	0.33kg (0.73lb)
Material	Front cover： metal Rear cover：plastic Bracket：plastic Bottom plate：metal
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Strorage Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)
Surge Protection	2KV
Ingress Protection	IP67

Sign In For Price

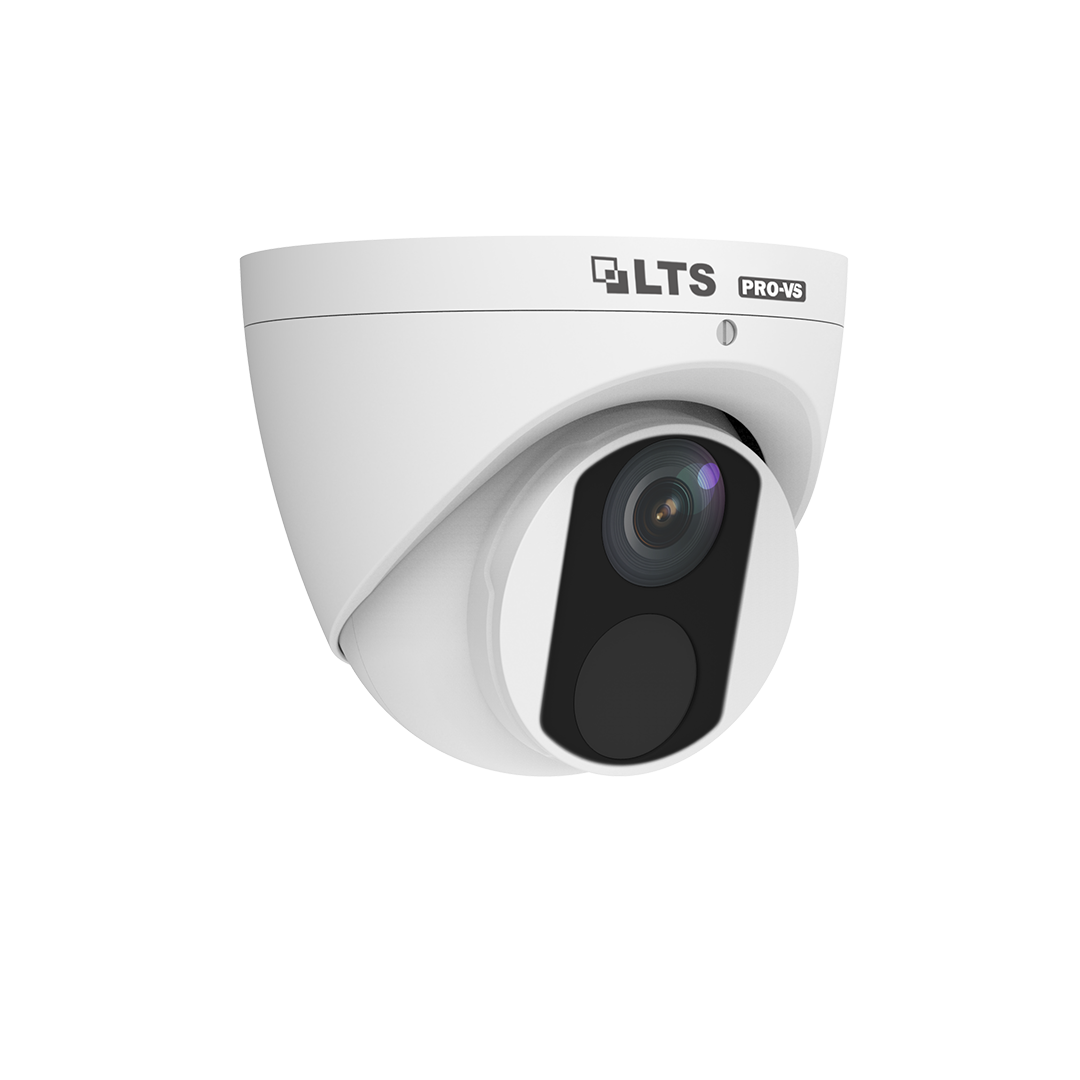

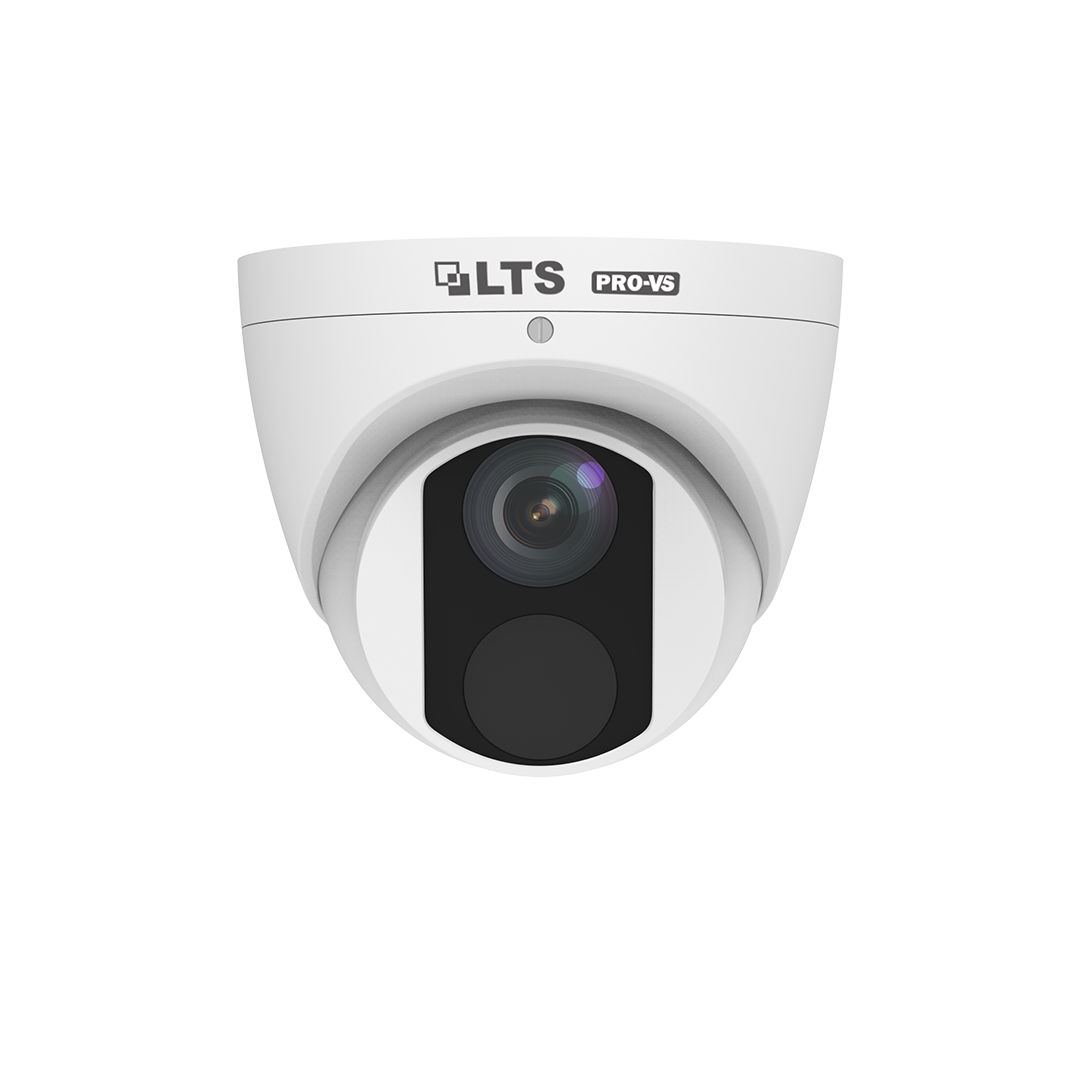

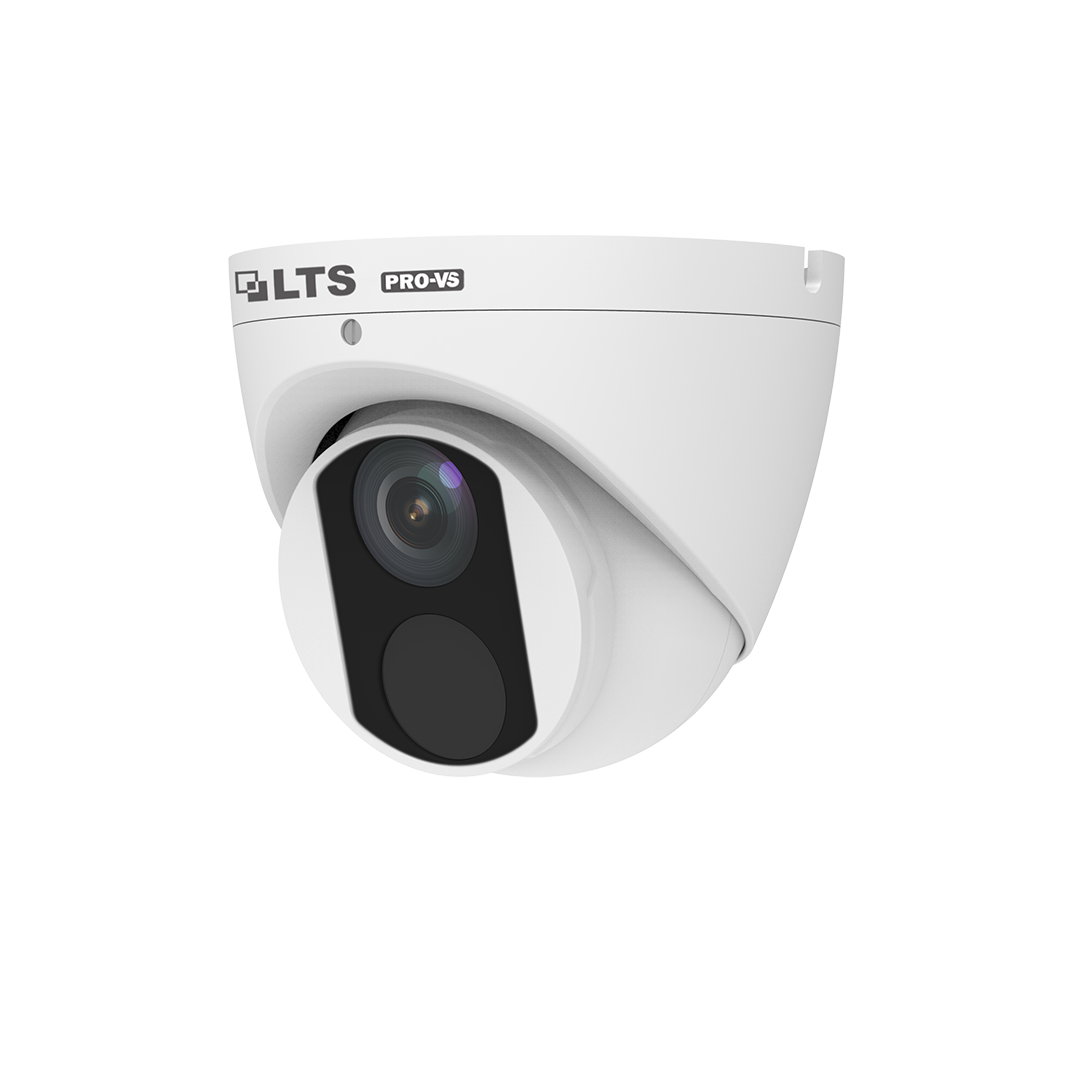

【PRO VS】 VSIP3182W-28, 4K Turret Network Camera, 8MP, 2.8mm
