Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Auto-Iris	No
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
Wide Dynamic Range	120dB
3-Axis Adjustment	Pan: 0° to 355°, Tilt: 0° to 75°, Rotation:0° to 355°
Lens
Focal Length	2.8mm
Aperture	F2.0
Focus	Manual
Field of View	2.8mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°
Lens Mount	M12
IR
IR Range	Up to 98ft (30m)
Wavelength	850nm
Compression Standard
Video Compression	Mainstream: H. 265/H.264
	Substream: H.265/H.264/MJPEG
	Thirdstream: H.265/H.264
H.264	Main Profile/High Profile
H.264+	Mainstream and substream support
H.265	Main Profile
H.265+	Mainstream and substream support
Video Bit Rate	256 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis	Line crossing and intrusion detection
Face Detection	Yes
Region of Interest	1 fixed region for mainstream and substream
Max. Resolution	2688x1520
Mainstream	50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Substream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Thirdstream	50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
	60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement	BLC/3D DNR
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping	No
Day/Night Switch	Day/Night/Auto/Schedule
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128GB), local storage and NAS (NFS/ SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API	ONVIF (Profile S, Profile G), ISAPI
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users
	3 levels: Administrator, Operator and User
Web Browser	IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Video Output	No
Onboard Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128GB
SVC	H.264 and H.265 encoding
Reset Button	Yes
General
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current	12 VDC, 0.6 A, max. 7.5W
	PoE (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 9W
Protection Level	IP67, IK10
Material	Metal
Dimensions	Φ 111 × 82.4 mm (Φ 4.4" × 3.2")
Weight	Approx. 500 g (1.1 lb.)

Sign In For Price

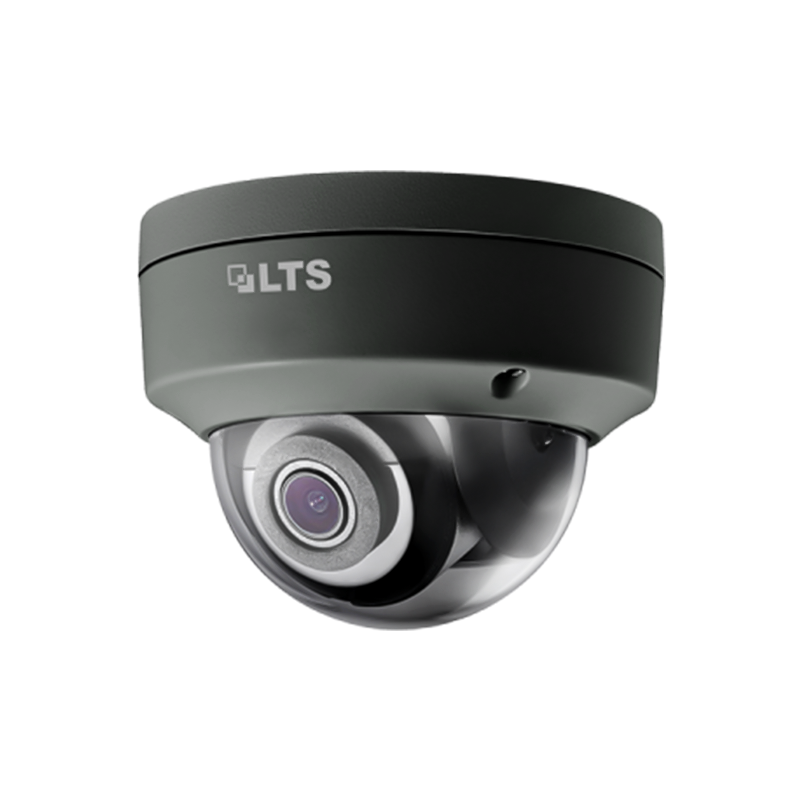

【LTS】 LTCMIP7362WB-28M, Platinum Network Vandal Dome IP Camera, 6MP, 2.8mm, True WDR, SD card slot, Black
