Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Lens	2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
Lens Mount	M12
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide Dynamic Range	True WDR 120dB
Compression Standard
Video Compression	Main stream: H.265/H.264
	Sub-stream: H.265/H.264/MJPEG
	Third stream: H.265/H.264
Bit Rate	256 Kbps to 16 Mbps
Dual stream	Yes
Max. Resolution	2688 × 1520
Frame Rate	60Hz: 15fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
	50Hz: 12.5fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage	NAS ( iSCSI optional)
Alarm Trigger	Motion detection.tampering alarm
Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
	802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility	ONVIF, PSIA, CGI
General functionalities	Flickerless, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface	1 RJ45 10M / 100M ethernet port
General
Working Temperature	-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
/Humidity
Behavior Analysis	Line crossing detection, intrusion detection
Face Detection	Yes
Power Supply	DC12V ± 25%, PoE (802.3af)
Power Consumption	Max. 6W
Ingress protection level	IP67
Dimension	70 mm × 155 mm (Φ 2.8" × 6.1")
Weight	410 g (0.9 lb.)

Sign In For Price

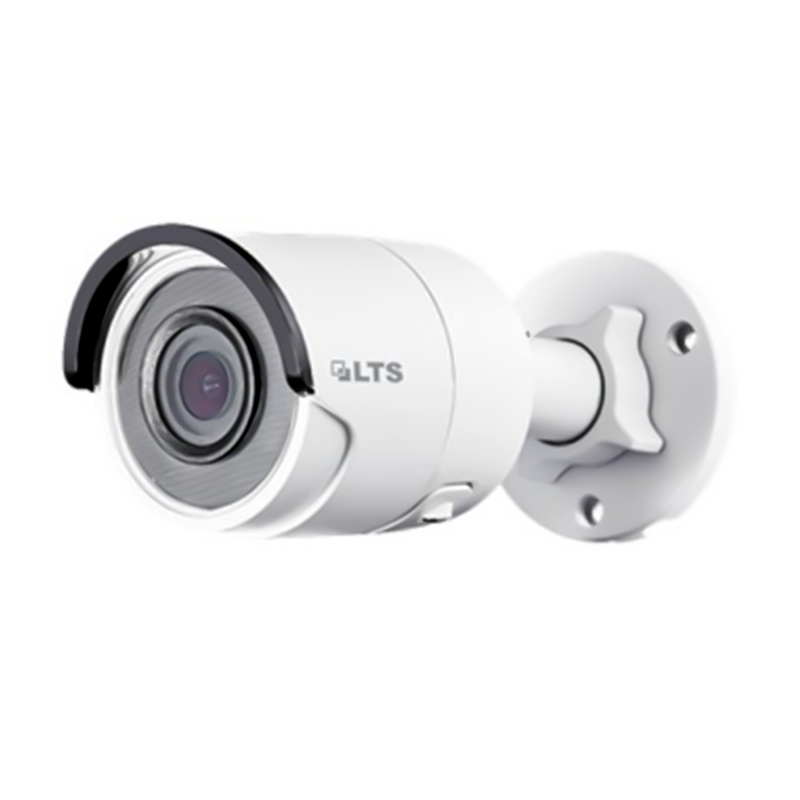

【LTS】 LTCMIP8362W-28M, Platinum Network Mini Bullet IP Camera, 6MP, 2.8mm, True WDR, SD card slot
