Technical Speciﬁcation
Camera
Image Sensor		1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels		3072(H) x 2048(V)
RAM/ROM		512MB/32MB
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination		0.04Lux/F1.6( Color,1/3s,30IRE) 0.4Lux/F1.6( Color,1/30s,30IRE) 0Lux/F1.6(IR on)
S/N Ratio		More than 50dB
IR Distance		Distance up to 50m (164ft)
IR On/Off Control		Auto/ Manual
IR LEDs		1
Lens
Lens Type		Fixed
Mount Type		Board-in
Focal Length		2.8mm (3.6mm optional)
Max. Aperture		F1.6(F1.6)
Angle of View		H: 98° (69°), V: 67° (48°)
Optical Zoom		N/A
Focus Control		Fixed
Close Focus Distance		0.9m (1.7m)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	69m(226ft)	28m(92ft)	14m(46ft)	7m(23ft)
	3.6 mm	89m(292ft)	36m(118ft)	18m(59ft)	9m(30ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range		Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Intelligence
IVS		Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions		Face Detection
Video
Compression		H.265+/H.265/H.264+/H.264
Streaming Capability		3 Streams
Resolution		(3072×2048)/(3072×1728)/(2592×1944)/ (2688×1520)/(2560×1440)/ (2304×1296)/1080P(1920×1080)/ SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate		Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)
		Sub Stream: D1(1~25/30fps)
		Third Stream: 1080P(1~25/30fps)
Bit Rate Control		CBR/VBR
Bit Rate		H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day/Night		Auto(ICR) / Color / B/W
BLC Mode		BLC / HLC / WDR(120dB)
White Balance		Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control		Auto/Manual
Noise Reduction		3D DNR
Motion Detetion		Off / On (4 Zone, Rectangle)
Region of Interest		Off / On (4 Zone)
Electronic Image Stabilization (EIS)		N/A
Smart IR		Support
Defog		N/A
Digital Zoom		16x
Flip		0°/90°/180°/270°
Mirror		Off / On
Privacy Masking		Off / On (4 Area, Rectangle)
Audio
Compression		G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability		ONVIF, PSIA, CGI
Streaming Method		Unicast / Multicast
Max. User Access		10 Users /20 Users
Edge Storage		NAS Local PC for instant recording Mirco SD card 128GB
Web Viewer		IE, Chrome, Firefox, Safari
Management Software		Smart PSS, DSS, Easy4ip
Smart Phone		IOS, Android
Certifications
Certifications		CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface		N/A
Audio Interface		Built-in Mic
RS485		N/A
Alarm		N/A
Electrical
Power Supply		DC12V, PoE (802.3af)(Class 0)
Power Consumption		<6W

Sign In For Price

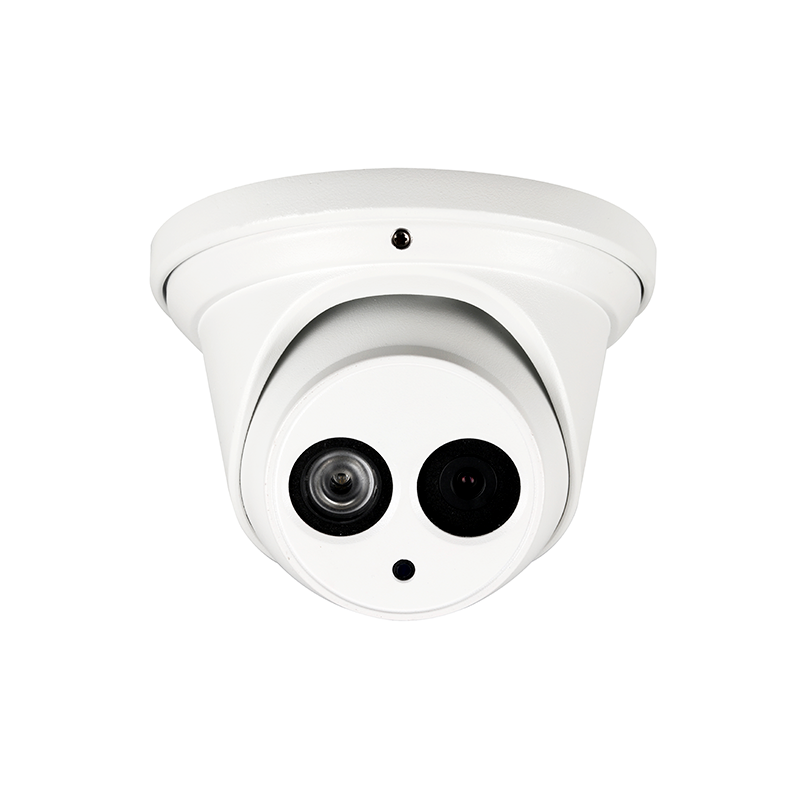

【LTS Sapphire】 LTDHIP3662W-36ISM, IP Eyeball 1/2.9” Built-in Mic, 6MP, 3.6mm, WDR H.265 IR 50m, Micro SD memory LTS Sapphire series
