Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Lens	2.8mm@F2.0
Lens	2048 × 1536:Angle of view: 86° 1920 × 1080:Angle of view: 98.5°
Lens Mount	M12
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide Dynamic Range	120dB
3-Axis Adjustment	Pan: -30°to +30°, tilt: 0°to 75°, rotate: 0°to 360°
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 compression profile	Main Profile/High Profile
Bit Rate	256 Kbps to 16 Mbps
Audio compression	G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio bit rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Max. Resolution	3072 × 2048
Frame Rate	50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Network
Network Storage	Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6
System Compatibility	ONVIF, PSIA, CGI, ISAPI
General functionalities	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128G
Alarm interface	1 Input: Alarm in (3.5mm), 1 Output: Alarm out (3.5mm)
General
Working Temperature /Humidity	-30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.7A, max. 8.5W, Φ 5.5mm coaxial plug power PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Ingress Protection Level	IK08, IP66
Material	Front cover: plastic, Bottom base: metal
Dimension	Φ110 mm × 56.4 mm (Φ4.3" × 2.2")
Weight	Camera: Approx. 400 g (0.9 lb.)

Sign In For Price

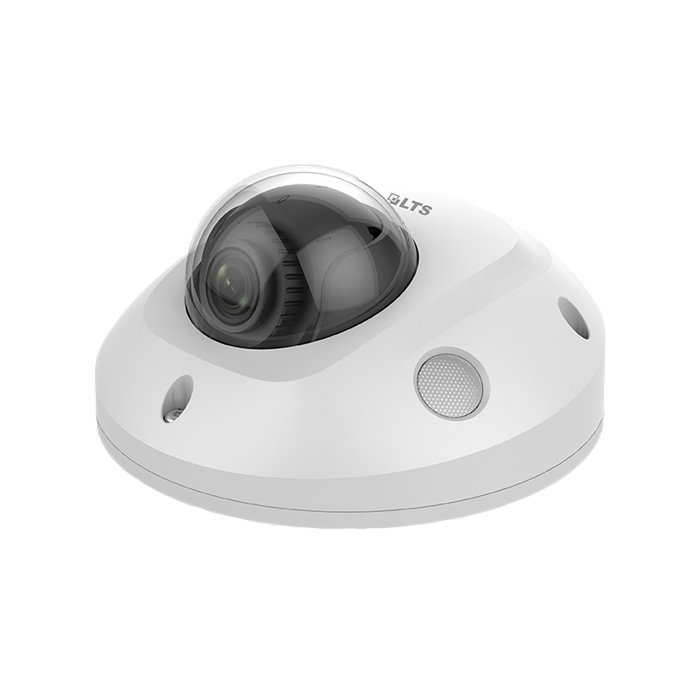

【LTS】 LTCMIP3162NW-28S,Platinum Matrix IR Fixed Mini Dome Network Camera,6MP,2.8mm,True WDR,Audio/Alarm
