Camera
Image Sensor	1/1.8"Sensor
Min. Illumination	0.05 lux @ (F1.2, AGC ON),0.3 lux @ (F2.8, AGC ON ) 0 lux with IR
Shutter Speed	1/25 s to 1/100,000 s
Slow Shutter	Support
Lens	1.27mm @F2.0, angle of view: 360°
Lens mount	M12
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide dynamic range	Digital WDR
Compression Standard
Video Compression	H.264/MPEG4
H.264 Type	Baseline Profile/Main Profile/High Profile
Video Bit Rate	32 Kbps-16 Mbps
Audio Compression	G.711/G.726/MP2L2
Audio Bit Rate	64Kbps(G.711) / 16Kbps(G.726) / 64Kbps (MP2L2)
Max Resolution	3072×2048
Frame Rate	High-frame Mode: support 60Hz: 1 × fisheye (3072 × 2048, 25fps) or (2048 × 2048, 30fps) or 4 ×PTZ at (1024 ×768, 30fps) 50Hz: 1 ×fisheye (3072 ×2048, 25fps) or (2048× 2048, 25fps) or 4 ×PTZ at (1024 ×768, 30fps) Multi-channel Mode: support 60Hz: 1 ×fisheye (1280 × 1280, 15fps) and 1 × panoramic (2048 ×1536, 15fps) and 3× PTZ (1024 ×768, 15fps) 50Hz: 1 ×fisheye (1280 ×1280, 12.5fps) and 1 × panoramic (2048 × 1536, 12.5fps) and 3 × PTZ(1024 × 768, 12.5fps)
Image Setting	Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance
High Light Compensation	Support
Day/night Switch	Auto / Schedule / Alarm trigger
Network
Network Storage	NAS, SAMB / CIFS
Alarm trigger	Motion detection, dynamic analysis, tamper alarm, network disconnect, IP address conflict,storage full, storage error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security	User Authentication, Watermark, IP address filtering, Anonymous access
Standard	ONVIF, PSIA, CGI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port, 1 RS-485 interface
On-board storage	Built-in Micro SD/SDXC slot, up to 64 GB
General
Working Temperature /Humidity	-22 °F – 140 °F(-30 °C – 60 °C )
Working Temperature /Humidity	Humidity 95% or less (non-condensing)
Power Supply	12V DC/ PoE
Power Consumption	Max.11W
IR range	Max. 10m(33ft)
Protection	IEC 60068-2-75 test, Eh, 50J; EN 50102, EN50155
Dimension	Φ6.6”× 1.7”(Φ167.4 × 43.8mm)
Weight	1.7lb(800g)

Sign In For Price

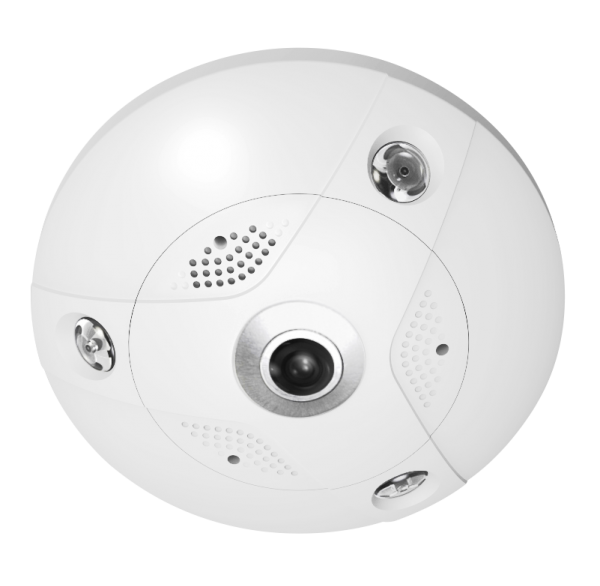

【LTS】 LTCMIP7562F, Platinum Network Fisheye IP Camera,6MP,1.27mm
