Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Lens	2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	128dB
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Compression Standard
Video Compress ion	Main stream: H.2 65/H.264 Sub stream: H.265/H.2 64/MJPEG Third stream: H.2 65/H.264
H.264 Type	Main Profile/High Profile
H.264 Zip+	Support
H.265 Type	Main Profile
H.265+	Support
Video Bit Rate	32 Kbps ~ 16 Mbps
Max Resolution	3072 × 2048
Main Stream	50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 360, 352 × 288) / 60Hz: 30fps (640 × 360, 352 × 240)
Third Stream	50Hz: 25fps (1280 ×720) / 60Hz: 30fps (1280 ×720)
Image Enhancement	BLC/ 3D DNR
ROI	Support 1 fixed region for each stream, and face dynamic tracking
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Behavior Analysis	Line crossing detection, intrusion detection
Day/Night Switch	Auto/Scheduled
General
Operating Conditions	-22 °F ~+140 °F(-30 °C ~ +60 °C ) Humidity 95% or less (non-condensing)
Power Supply	DC12V
IR Range	Up to 100ft (30m)
Protection Level	IP67
Impact Protection	IK10
Dimensions	4.4″ × 3.2″ (Φ 111× 82.4 mm)
Weight	1.1lb (500g)

Sign In For Price

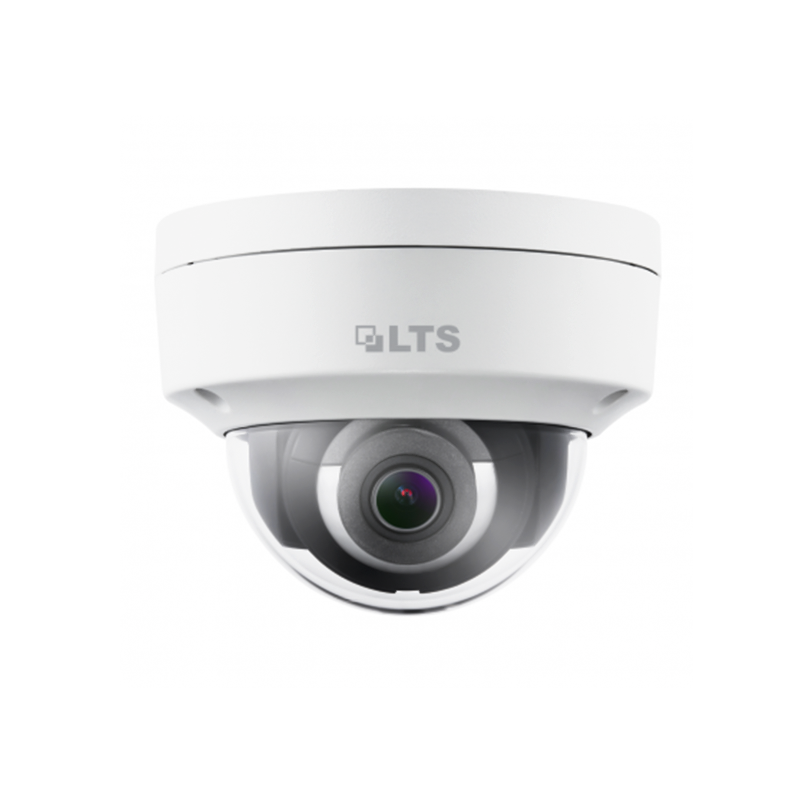

【LTS】 LTCMIP7362W-M, Platinum Network Vandal Dome IP Camera, 6MP, 4mm, True WDR, Matrix IR 2.0, SD card slot
