System Overview

The IR Megapixel Fixed camera delivers 2MP/4MP/5MP resolution with a 2.8mm/3.6mm fixed lens.The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

Functions

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Intelligent Video analysis (IVS)

LTS camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance.

Wide Dynamic Range (WDR)

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Smart IR Technology

With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).

Protection (IP67, wide voltage)

The camera allows for ±10% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments.

Environmental

LTS cameras operate in extreme temperature environments, rated for use in temperatures from-30° C to +60° C (-22° F to +140° F) with 95% humidity.

Image flip

Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.

Interoperability

The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

Technical Speciﬁcation
Camera
Image Sensor		1/2.7” 5Megapixel progresive CMOS
Effective Pixels		2592(H) x1944(V)
RAM/ROM		512MB/32MB
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/3~1/100000s
Minimum Illumination		0.03Lux/F2.0( Color,1/3s,30IRE) 0.3Lux/2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on)
S/N Ratio		More than50dB
IR Distance		Distance up to 30m(98ft)
IR On/Off Control		Auto/ Manual
IR LEDs		12
Lens
Lens Type		Fixed
Mount Type		Board-in
Focal Length		2.8 mm (3.6 mm optional)
Max. Aperture		F2.0/F2.0
Angle of View		H:96°/78°, V:70°/58°
Focus Control		Fixed
Close Focus Distance		N/A
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	63(207ft)	25(82ft)	13(43ft)	6(20ft)
	3.6 mm	80(262ft)	32(105ft)	16(52ft)	8(26ft)
PTZ
Pan/Tilt Range		Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Intelligence
IVS		Tripwire, Intrusion
Video
Compression		H.265+/H.265/H.264+/H.264
Streaming Capability		2 Streams
Resolution		5M(2592×1944)/4M(2688x1520/2560x1440)/3M(2304 ×1296)/1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240)
Frame Rate		5M(1 ~ 20fps)/3M (1 ~ 25/30fps)
		D1/CIF(1 ~ 25/30fps)
Bit Rate Control		CBR/VBR
Bit Rate		H.265: 12K ~ 8448Kbps H.264: 32K ~ 10240Kbps
Day/Night		Auto(IR-Cut) / Color / B/W
BLC Mode		BLC / HLC / WDR(120dB)
White Balance		Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control		Auto/Manual
Noise Reduction		3D DNR
Motion Detetion		Off / On (4 Zone, Rectangle)
Region of Interest		Off / On (4 Zone)
Electronic Image Stabilization (EIS)		N/A
Smart IR		Support
Digital Zoom		16x
Flip		0°/90°/180°/270°
Mirror		Off / On
Privacy Masking		Off / On (4 Area, Rectangle)
Audio
Compression		N/A
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP ;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability		ONVIF, PSIA, CGI
Streaming Method		Unicast / Multicast
Max. User Access		10 Users / 20 Users
Edge Storage		NAS Local PC for instant recording
Web Viewer		IE, Chrome, Firefox, Safari
Management Software		Smart PSS, DSS,Easy4ip
Smart Phone		IOS, Android
Certifications
Certifications		CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface		N/A
Audio Interface		N/A
RS485		N/A
Alarm		N/A
Electrical
Power Supply		DC12V PoE (802.3af)(Class 0)
Power Consumption		<4W

Sign In For Price

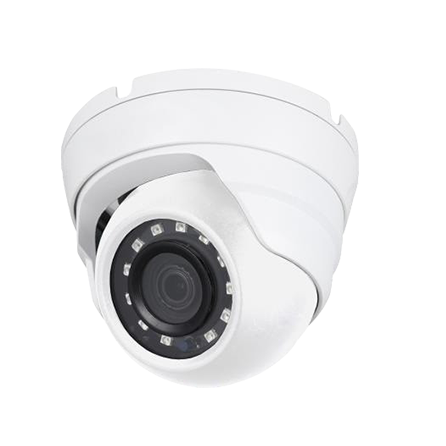

【LTS Sapphire】 LTDHIP3252W-36, IP Eyeball 1/2.7” Fixed Lens, 5MP, 3.6mm, WDR H.265 IR 30m LTS Sapphire series
