Camera
Image Sensor	1/2.5" Sensor
Min. Illumination	0.6 lux @F1.2, AGC on, 1 lux @F1.6, AGC on, 0 lux with IR
Shutter Speed	1/25s~1/100,000s
Lens	3.5 ~ 9 mm @F1.6, angle of view: 92°~ 36°
Lens Mount	Φ14
Auto Iris	DC drive
Day & Night	IR cut filter with auto switch
Compression Standard
Video Compression	H.264 / MPEG4 / MJPEG
Bit Rate	32 Kbps ~ 16 Mbps
Dual Stream	Yes
Max. Resolution	2560 × 1920
Frame Rate	60 Hz: 7.5fps (2560 x 1920), 15 fps (2048 × 1536), 30 fps (1920 × 1080), 30 fps (1600 × 1200), 30fps (1280 x 720)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage	NAS (iSCSI optional)
Alarm Trigger	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional)
Security	User authentication, watermark
Interface
Communication Interface	1 RJ45 10M / 100M ethernet interface and 1 RS-485 interface
Video Output	1Vp-p Composite Output (75 Ω, BNC)
On-board Storage	Built-in SD/SDHC slot, up to 32 GB
Reset Button	Yes
General
Working Temperature /Humidity	-10°C~60°C(14°F~140°F) Humidity 90% or less (non-condensing)
Power Supply	24 VAC ± 10%, PoE (802.3af)
Power Consumption	Max. 9W (max. 12W with IR cut filter on)
Impact protection	IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress protection level	IP66
IR range	Approx. 20 ~ 30m (66~100ft)
Dimension	Φ159.8 × 146 mm (Φ 6.29” × 5.75”)
Weight	2100g (4.62 lbs)

Sign In For Price

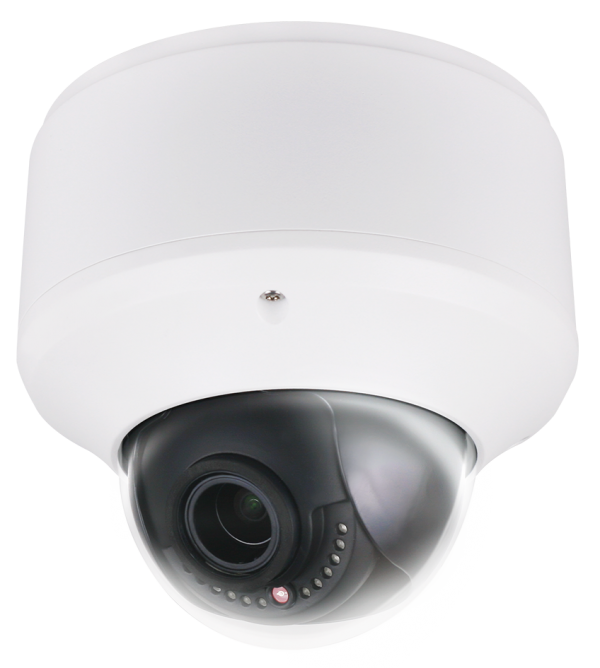

【LTS】 LTCMIP3953-Z,Platinum Dome IP Camera,5MP,3.5-9mm
