Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mm, horizontal FOV:98°, vertical FOV: 55°, diagonal FOV: 114°
Lens Mount	M12
Day & Night	IR cut filter with auto switch
DNR	3D DNR
Wide Dynamic Range	True WDR 120dB
Angle Adjustment	Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression	Main stream: H.265/ H.264
	Sub stream: H.265/H.264/ MJPEG
	Third stream: H.265/ H.264
H.264 / H.264+ Type	Main Profile / High Profile / Main Stream and Sub Stream Support
H.265 / H.265+ Type	Main Profile / Main stream and sub stream support
Video Bit Rate	32 Kbps ~ 16 Mbps
Dual Stream	Support
Max. Resolution	2560 × 1440
Main Stream	50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240)
Behavioral Analysis	Line crossing detection, intrusion detection
Network
Network Storage	Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Reset	Yes
General
Working Temperature	-22 °F ~ 140 °F (-30 °C ~ 60 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 25%,
Power Consumption	12 VDC, 0.5A, Max. 6W
IR Range	Up to 100ft
Weather Proof Ratings	IP67
Dimensions	5.01″ × 3.78″ (Φ 127.3 × 95.9 mm)
Weight	1.3 lb. (610g)

Sign In For Price

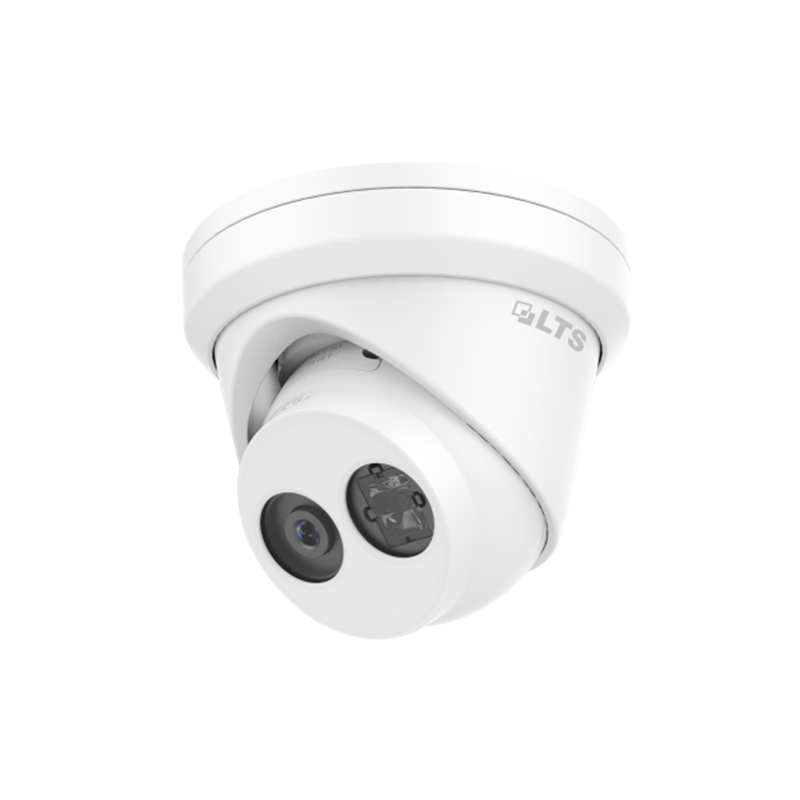

【LTS】 LTCMIP3342W-28M, Platinum Turret Network IP Camera, 4MP, 2.8mm, Matrix IR 2.0, True WDR, SD card slot
