Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0 .018Lux @ (F1.6, AGC ON)
Shutter Speed	1/3 s to 1/100,000 s, support slow shutter
Lens	2.8 to 12 mm, Horizontal view: 98° to 28°, Vertical view: 51° to 16°, Diagonal view: 115° to 32°
Lens Mount	Φ14
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	True WDR 120dB
Angle Adjustment	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Compression Standard
Video Compression	Main stream: H. 265/H.264
	Sub stream: H.265/H. 264/MJPEG
H.264 / H.264 Zip+ Type	Base Profile / Main Profile / High Profile / Main Stream Supports
H.265 / H.265+ Type	Main Profile / Main Stream Support
Video Bit Rate	32 Kbps ~ 8 Mbps
Max. Resolution	2560 × 1440
Main Stream	50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Setting	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI	1 fixed region for main stream and sub-stream
Day/Night Switch	Auto / Scheduled
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Simultaneous Live View	Up to 6 channels
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
General
Working Temperature	-22°F ~ +140°F (-30°C ~ 60°C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC 12V ± 10%, PoE (802.3af)
Power Consumption	Max. 11W
IR Range	Approx. 100ft (30 meters)
Weather Proof Ratings	IP67
Dimensions	4.1" × 4.1" × 5.7" (105 mm × 105 mm × 145 mm)
Weight	2.3lb. (1035g)

Sign In For Price

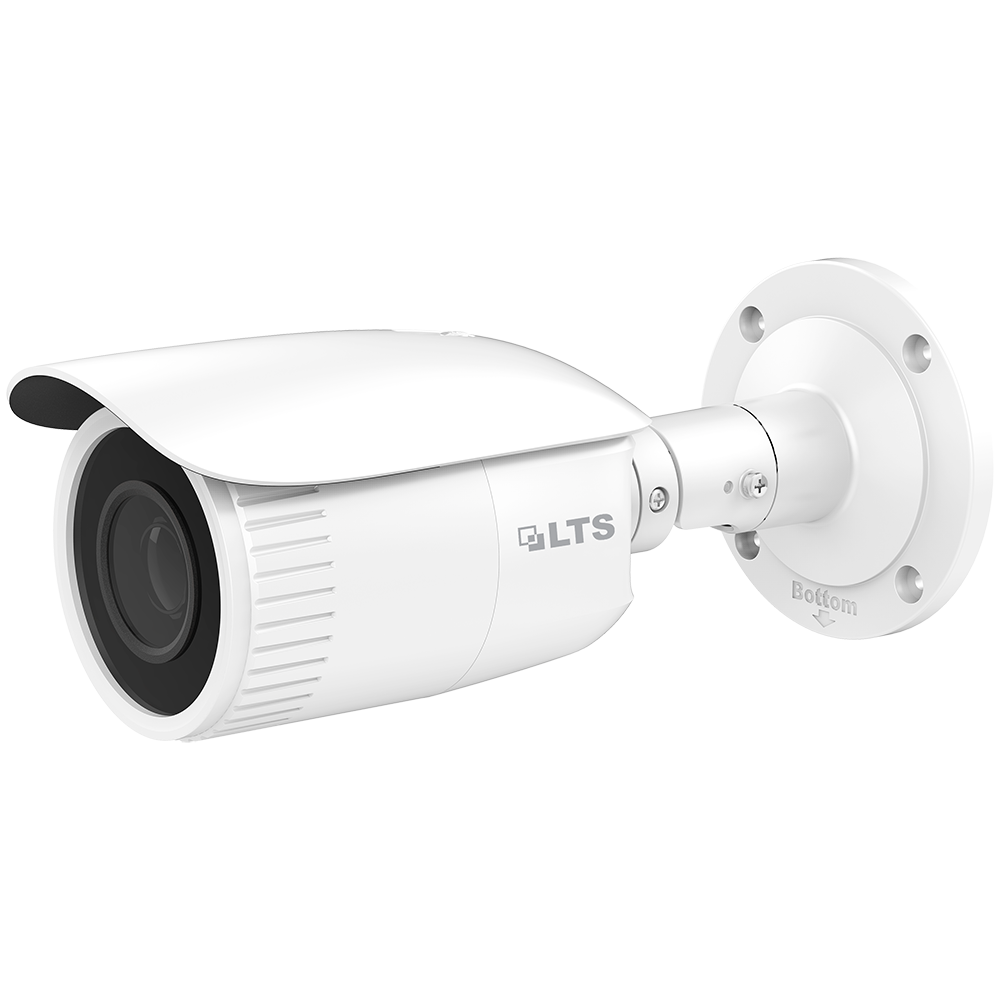

【LTS】 LTCMIP8043W-MZ, Platinum VF Motorized Bullet IP Camera, 4MP, 2.8-12 mm, True WDR, SD card slot
