Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2,AGC ON),0 Lux withIR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mm，Angle of view：106 °
Lens Mount	M12
Day & Night	IR cut filter with auto switch
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355°
Compression Standard
Video Compression	H.264 / MJ PEG
H.264 Type	Main Profile
Video Bit Rate	32 Kbps ~ 8 Mbps
Dual Streams	Support
Max. Resolution	2688×1520
Frame Rate	"60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps (1280×720) 50Hz: 20fps (2688×1520), 25fps (1920×1080), 25fps (1280×720)"
Image Setting	"Rotate Mode, Saturation, Brightnes s , Contras t, Sharpnes s adjus table by client software or web brows er"
BLC	Support, zone configurable
ROI Codec	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, Tampering alarm, Network dis connect, IP addres s conflict, Storage exception
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One- key res et, Flash- prevention, dual s tream, mirror, pas sword protection, privacy mas k, watermark, IP addres s fitering, Anonymous acces s
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ 45 10M/100M Ethernet port
On-Board Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Reset	Yes
Wi-Fi
Wireless Standards	IEEE802.11b, 802.11g, 802.11n
Frequency Range	20/40MHz Support
Channel Bandwidth	20/40MHz Support
Protocols	802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates	11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range	50 meters *The performance varies based on actual environment
General
Working Temperature /Humidity	"- 22 °F ~ 140 °F (- 30 °C ~ 60 °C) Humidity 95% or les s (non- condens ing)"
Power Supply	DC12V ±10%, PoE (802.3af)
Power Consumption	Max. 5W
IR Range	Approx. 100ft (30 meters )
Weather Proof Ratings	IP67
Impact Protection	IEC60068-2-75Eh, 20J; EN50102, up to IK10
Dimensions	Φ4.4"×3.2"(Φ111×82.0mm)
Weight	1.1 lbs (500g)

Sign In For Price

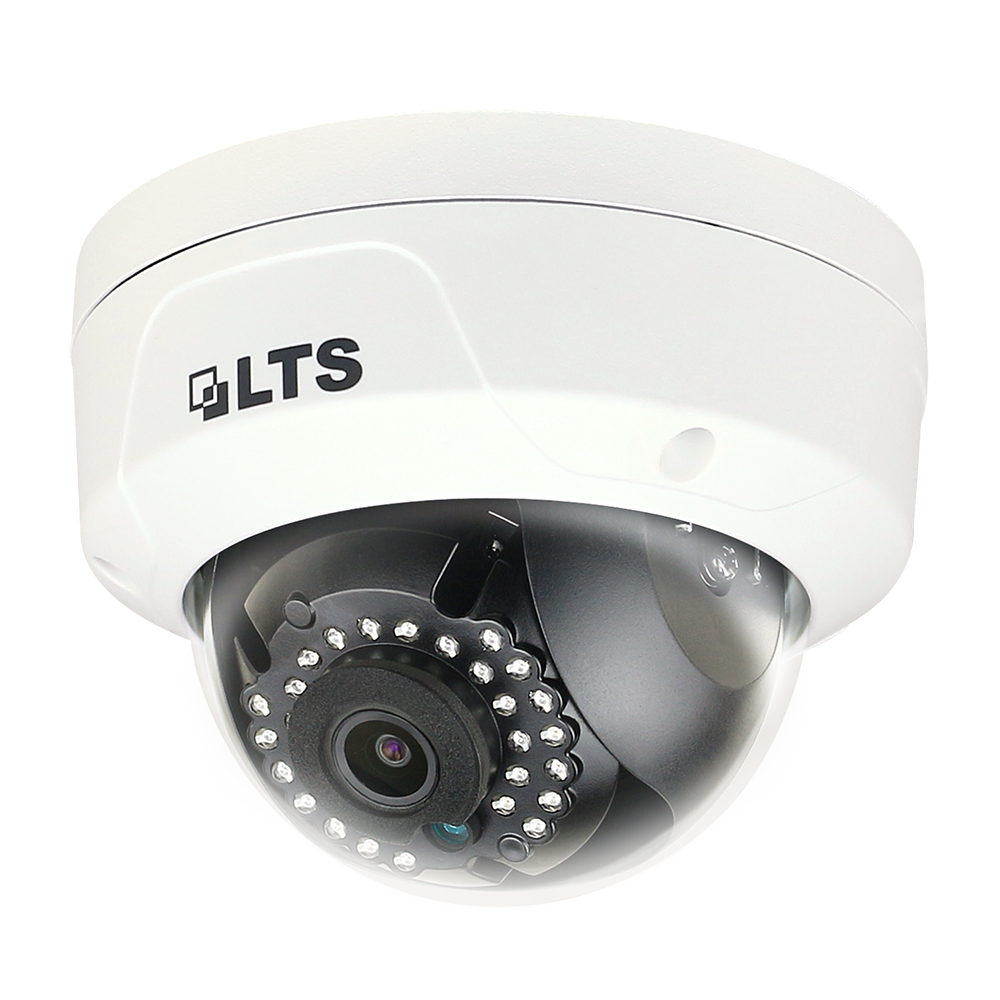

【LTS】 LTCMIP7442W-28WIFI, Platinum Network Mini Dome Camera, 4MP, 2.8mm, True WDR, WiFi
