Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 .028Lux @ (F2.0, AGC ON)
Shutter Speed	1/3 s to 1/10,000 s
Lens	4mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
Lens Mount	M12
Day & Night	IR cut filter with auto switch
DNR	3D DNR
Wide Dynamic Range	DWDR
Angle Adjustment	Pan: 0° to 360°, tilt: 0°to 180°, rotation:0° to 360°
Compression Standard
Video Compression	Main stream: H. 265/H.264
	Sub stream: H.265/H. 264/MJPEG
H.264 / H.264 Zip+ Type	Base Profile / Main Profile / High Profile / Main Stream Supports
H.265 / H.265+ Type	Main Profile / Main Stream Support
Video Bit Rate	32 Kbps ~ 8 Mbps
Max. Resolution	2560 × 1440
Main Stream	50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Setting	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI	1 fixed region for main stream and sub-stream
Day/Night Switch	Auto / Scheduled
Network
Network Storage	NAS (NFS,SMB/CIFS)
Alarm Trigger	Motion detection, video tampering alarm, illegal login
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Simultaneous Live View	Up to 6 channels
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
General
Working Temperature	-22 °F ~ 122°F (-30 °C ~50 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC 12V ± 10%, PoE (802.3af)
Power Consumption	Max. 5W
IR Range	Approx. 100ft (30 meters)
Weather Proof Ratings	IP67
Dimensions	Φ 2.7"× 6.8" (Φ 70 × 172.7 mm)
Weight	0.62lbs (500g)

Sign In For Price

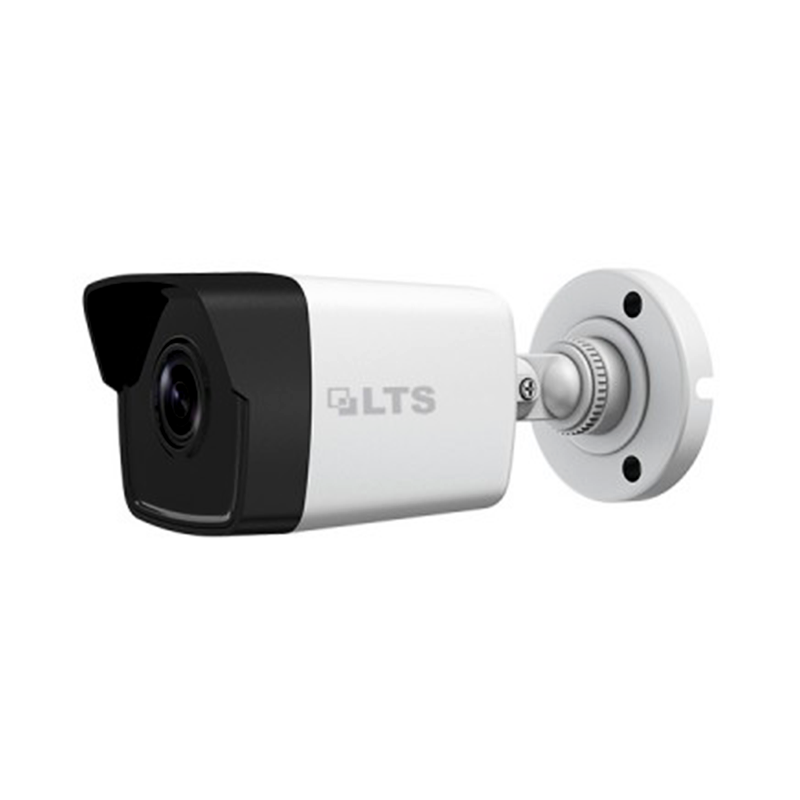

【LTS】 LTCMIP8042, Platinum Mini Bullet Network IP Camera, 4MP, 4mm
