Camera
Image Sensor	1/3 " Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 .028Lux @ (F2.0, AGC ON)
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	Digital WDR
Angle Adjustment	Pan: 0° ~ 355°, T ilt: 0° ~ 70
Compression Standard
Video Compression	Main stream: H.2 65/H.264 Sub stream: H.265/H.2 64/MJPEG
H.264 / H.264+Type	Baseline Profile/ Main Profile/ High Profile
H.265 / H.265+ Type	Main Profile / Main Stream Support
Video Bit Rate	32 Kbps ~ 8 Mbps
Max. Resolution	2560 × 1440
Main Stream	50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Enhancement	BLC/ 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Network
Network Storage	NAS (NFS,SMB/CIFS)
Alarm Trigger	Motion detection, video tampering alarm, illegal login
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Standard	ONVIF(PROFILE S,PROFILE G),ISAPI
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Reset	Yes
General
Working Temperature	-22 °F ~+122 °F(-30 °C ~ +50 °C ) Humidity 95% or less (non-condensing)
/Humidity
Power Supply	DC 12V ± 25%
Power Consumption	Max. 5W 12 VDC ± 25%,
IR Range	Up to 100ft
Weather Proof Ratings	IP67
Impact Protection	IK10
Dimensions	Φ4.4″ × 3.2″ (Φ111 × 82.4 mm)
Weight	0.9lb. (410 g)

Sign In For Price

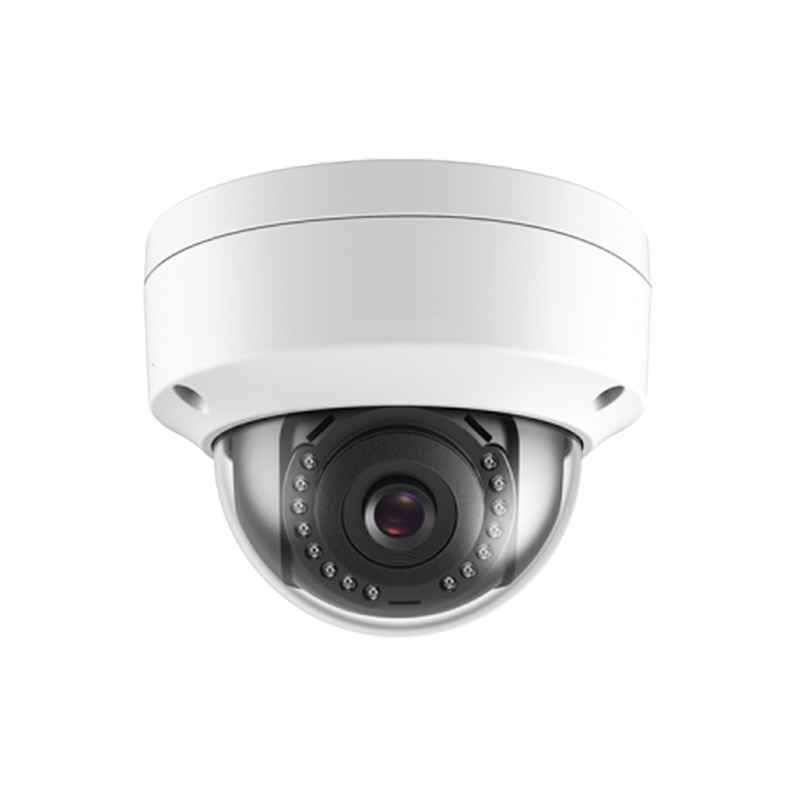

【LTS】 LTCMIP7042-28, Platinum Network Vandal Dome IP Camera, 4MP, 2.8mm
