Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 .028Lux @ (F2.0, AGC ON)
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	DWDR
Angle Adjustment	Pan: 0° to 360°, tilt: 0°to 75°, rotation:0° to 360°
Compression Standard
Video Compression	Main stream: H .265/H.264, Sub stream: H.265/H .264/MJPEG
H.264 / H.264 Zip+Type	Baseline Profile / Main Profile / High Profile / Main Stream Support
H.265 / H.265+ Type	Main Profile / Main Stream Support
Video Bit Rate	32 Kbps ~ 8 Mbps
Max. Resolution	2560 × 1440
Main Stream	50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Setting	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
ROI	1 fixed region for main stream and sub-stream
Day/Night Switch	Auto/Scheduled
Network
Network Storage	NAS (NFS,SMB/CIFS)
Alarm Trigger	Motion detection, video tampering alarm, illegal login
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Reset	Yes
General
Working Temperature	-22 °F ~ 122 °F (-30 °C ~ 60 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 25%, PoE (802.3af)
Power Consumption	Max. 8.5W/wwW (PoE)
IR Range	66ft to 100ft
Weather Proof Ratings	IP67
Dimensions	Φ 5.14″ × 4.03″ (Φ 130.5 × 102.4 mm)
Weight	1.07lb. (485 g)

Sign In For Price

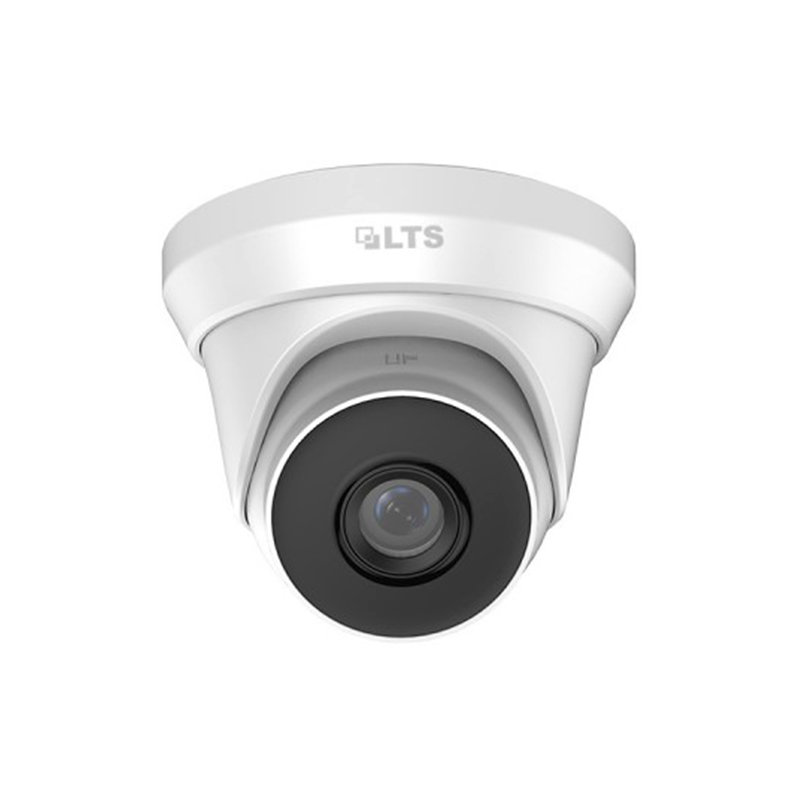

【LTS】 LTCMIP1042-28, Platinum Matrix Turret Network IP Camera, 4MP, 2.8mm
