" padding:="" border:="" 1px="" solid="" rgb(209,="" 209,="" 209);="" border-collapse:="" collapse;="" border-spacing:="" empty-cells:="" show;="" font-size:="" 15px;="" width:="" 896px;="" color:="" rgb(0,="" 0,="" 0);="" font-family:="" roboto,="" sans-serif;="" font-style:="" normal;="" font-variant-ligatures:="" font-variant-caps:="" font-weight:="" 400;="" letter-spacing:="" orphans:="" 2;="" text-align:="" left;="" text-indent:="" text-transform:="" none;="" white-space:="" widows:="" word-spacing:="" -webkit-text-stroke-width:="" background-color:="" rgb(255,="" 255,="" 255);="" text-decoration-style:="" initial;="" text-decoration-color:="" initial;"="">Camera Series: Platinum Series

Camera Resolution: 2MP

Camera Technology: IP / Network

Camera Housing: Bullet

Specifications

Camera

Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.2, AGC ON) 0 Lux with white light Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with white light
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Day & Night	IR Cut Filter
Digital Noise Reduction	3D DNR
WDR	120dB
3-Axis Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal length	6 to 22mm
Lens Type	Motorized
Aperture	F1.6
Focus	Auto
FOV	Horizontal field of view: 42.4° to 17.4° Vertical field of view: 23.4° to 9.2° Diagonal field of view: 49.6° to 20°
Lens Mount	Φ14

Compression Standard

Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Video Bit Rate	32 Kbps to 16 Mbps

Smart Feature-set

Behavior Analysis	Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Exception Detection	Scene change detection
Face Detection	Yes
Region of Interest	Support 1 fixed region for main stream and sub-stream


Max. Resolution	1920 × 1080
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
Image Enhancement	BLC/3D DNR/HLC
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser

Sign In For Price

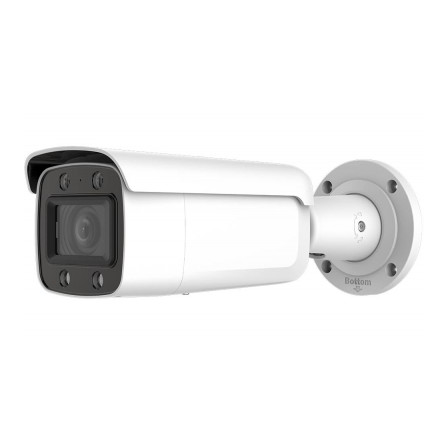

【LTS】 LTCMIP7923LPR-22, 2MP License Plate Recognition IR Varifocal Bullet Network Camera, True WDR 120dB
