Camera
Image Sensor	1/2.8 " Progressive S can CMOS
Min. Illumination	0.005 Lux @ (F1.2, AGC ON), 0 lux with IR；0.007 Lux @ (F1.4, AGC ON), 0 lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Support
Lens	4.7-94mm @ F1.4 angle of view:53.8°~3.1°
Lens Mount	AF automatic focusing and motorized zoom lens
Auto Iris	DC drive
Day & Night	IR cut filter with auto switch
DNR	3D DNR
Wide Dynamic Range	120dB
Compression Standard
Video Compression	H.264 Zip+/H.264/MJPEG/MPEG4
H.264 Type	Baseline Profile / Main Profile / High Profile
Video Bit Rate	32 Kbps – 16 Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Audio Bit rate	64Kbps (G.711) / 16Kbps (G.722.1) / 16Kbps (G.726) / 32- 128Kbps (MP2L2)
Max. Resolution	1920 × 1080
Max Frame Rate	60Hz: 60fps (1920 × 1080)/(1280 × 960)/(1280 × 720) 50Hz: 50fps (1920 × 1080)/(1280 × 960)/(1280 × 720)
Sub Stream	60Hz: 30fps (352×240, 640x480) 50Hz: 25fps (352×288, 640x480)
Third Stream	Independent with Main Stream and Sub Stream, up to 50Hz: 1fps(1920 × 1080); 60Hz: 1fps (1920 × 1080)
Image Enhancement	EIS/BLC/HLC/3D DNR/ROI/Defog
Image Setting	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Distortion Correction	Support
Regional Cropping	Support
Day/Night Switch	Auto/Schedule/Triggered by Alarm In
Picture Overlay	LOGO picture can be overlaid on video with 128x128 24bit bmp format
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm,Intrusion Detection, Line Crossing Detection, Network disconnect, IP address conflict, Storage exception
Protocols	T CP/IP, UDP, ICMP, HT T P, HT T PS , FT P, DHCP, DNS , DDNS , RT P, RT S P, RT CP, PPPoE, NT P, UPnP, S MT P, S NMP, IGMP, 802.1X, QoS , IPv6, Bonjour
Security	User Authentication, Watermark, IP address filtering, Anonymous access
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Audio	1-ch 3.5 mm audio in (Mic in/Line in)/out interface
Communication Interface	1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface
Alarm	1 input, 1 output (up to DC24V 1A or AC110V 500mA)
Video Output	1Vp-p composite output (75 Ω/BNC)
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset	Yes
Audio
Environment Noise Filtering	Yes
Audio I/O	Yes
Audio Sampling Rate	Yes
General
Working Temperature	-22 °F ~ 140°F (-30 °C ~ 60 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 10%, PoE (802.3af)
Power Consumption	Max. 13W ( Max. 18W with Heat on)
IR Range	Approx. 394ft(120 meters)
Weather Proof Ratings	IP67
Dimensions	3.9” × 4.1” × 12.3”(100×103.9×311.8mm）
Weight	4.4lbs (2000 g）

Sign In For Price

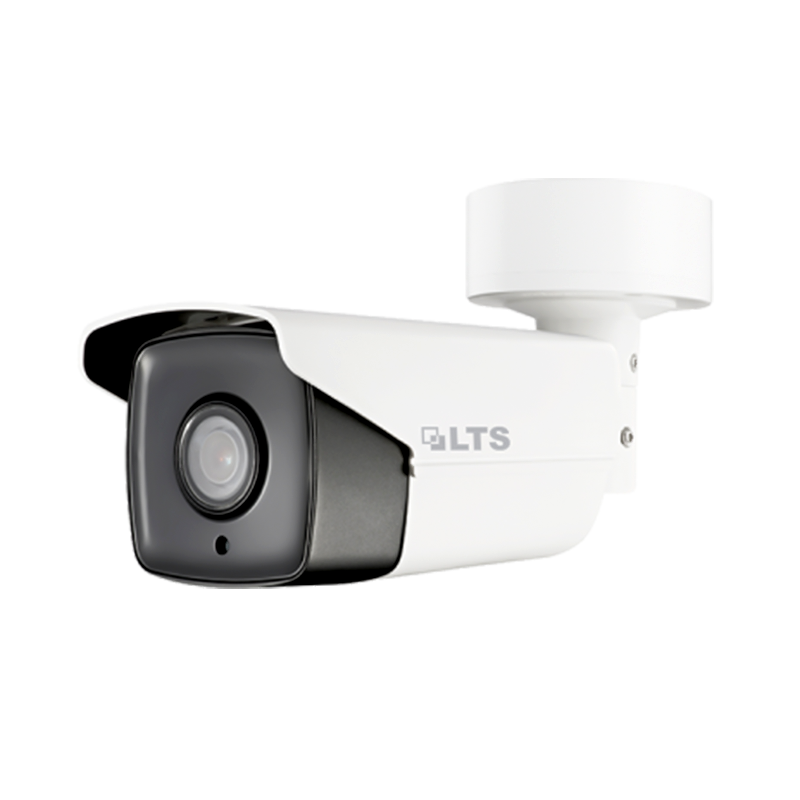

【LTS】 LTCMIP9223W-SZ, Platinum Long Range Bullet Network IP Camera, 2.1MP, VF Motorized Lens, True WDR, Audio/Alarm
