Camera
Image Sensor	1/2.8" Progres s ive S can CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8mm
Lens Mount	M12
Day &Night	IR cut fi lter with auto s witch
DNR	3D DNR
Wide Dynamic Range	Digital WDR
Swivel and Tilt	Swivel: -9 0° ~ 90°, Til t: 0 ° ~ 75°
Compression Standard
Video Compression	H.264 / MJ PEG
H.264 Type	Main Profile
Video Bit Rate	32 Kbps ~ 8 Mbps
Dual streams	Support
Max. Resolution	1920 × 1080
Frame Rate	60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Image Setting	Rotate Mode, S aturation, Brightnes s , Contras t, S harpnes s adjus table by client s oftware or web browser
BLC	S upport, zone configurable
ROI Codec	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Motion detection, Tampering alarm, Network dis connect, IP addres s conflict, Storage exception
Protocols	T CP/IP, UDP, ICMP, HT T P, HT T PS , FT P, DHCP, DNS , DDNS , RT P, RT S P, RT CP, PPPoE, NT P, UPnP, S MT P, S NMP, IGMP, 802.1X, QoS , IPv6, Bonjour
General	One- key res et, Flash- prevention, dual s tream, mirror, pas sword protection, privacy mask, watermark, IP addres s fitering, Anonymous acces s
Standard	ONVIF (PROFILE S , PROFILE G), PS IA, CGI, IS API
Interface
Communication Interface	1 RJ 45 10M/100M Ethernet port
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Reset	Yes
General
Working Temperature/Humidity	- 22 °F ~ 140 °F (- 30 °C ~ 60 °C)
	Humidity 95% or les s (non- condens ing)
Power Supply	DC 12V ± 10%, PoE (802.3af)
Power Consumption	Max. 5W
IR Range	12 IR LED up to 70ft
Weather Proof Ratings	IP66
Impact Protection	IK08
Dimensions	Φ4.4” × 3.2” (Φ111×82.0mm)
Weight	1.1 lbs (500g)

Sign In For Price

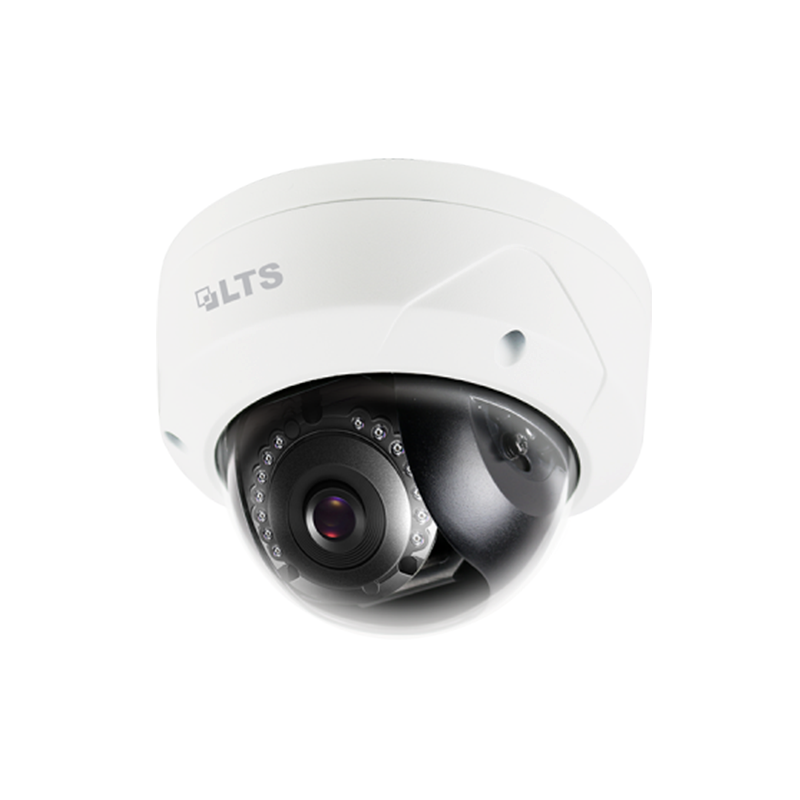

【LTS】 LTCMIP7422N-28M, Platinum Fixed Lens Dome Network IP Camera - 2MP, 2.8mm,SD card slot
