Camera
Image Sensor	1/2.8” sensor
Min. Illumination	0.05 lux@F2.0, AGC ON
	0 lux with IR
Shutter Speed	1/3s (1/4s) ~ 1/100,000s
Lens	4mm@F2.0
	Angle of view: 79°
Lens Mount	M12
Angle adjustment	Pan: 0° ~ 355°, tilt: 0° ~ 65°
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Compression Standard
Video Compression	H.264 / MJPEG
H.264 codec profile	Main profile
Bit Rate	32 Kbps ~ 8 Mbps
Dual stream	Yes
Max. Resolution	1920 × 1080
Frame Rate	60Hz: 30fps (1920 × 1080), 30fps (1280 x 960), 30fps (1280 x 720)
	50Hz: 25fps (1920 × 1080), 25fps (1280 x 960), 25fps (1280 x 720)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
BLC	Yes,zone configurable
Network
Network Storage	NAS
Alarm Trigger	Motion detection, tampering alarm
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibility	ONVIF, PSIA, CGI
General functionalities	User authentication, watermark
Interface
Communication Interface	1 RJ45 10M / 100M ethernet port
General
Working Temperature	-22°F ~ 140°F(-30°C ~ 60°C )
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 5W (max. 7W with ICR on)
Impact protection	IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress Protection Level	IP66
IR Range	100ft(30m)
Dimension	Φ4.4”x3.2”(Φ111.0 × 82.4 mm )
Weight	1.1 lbs(500g)

Sign In For Price

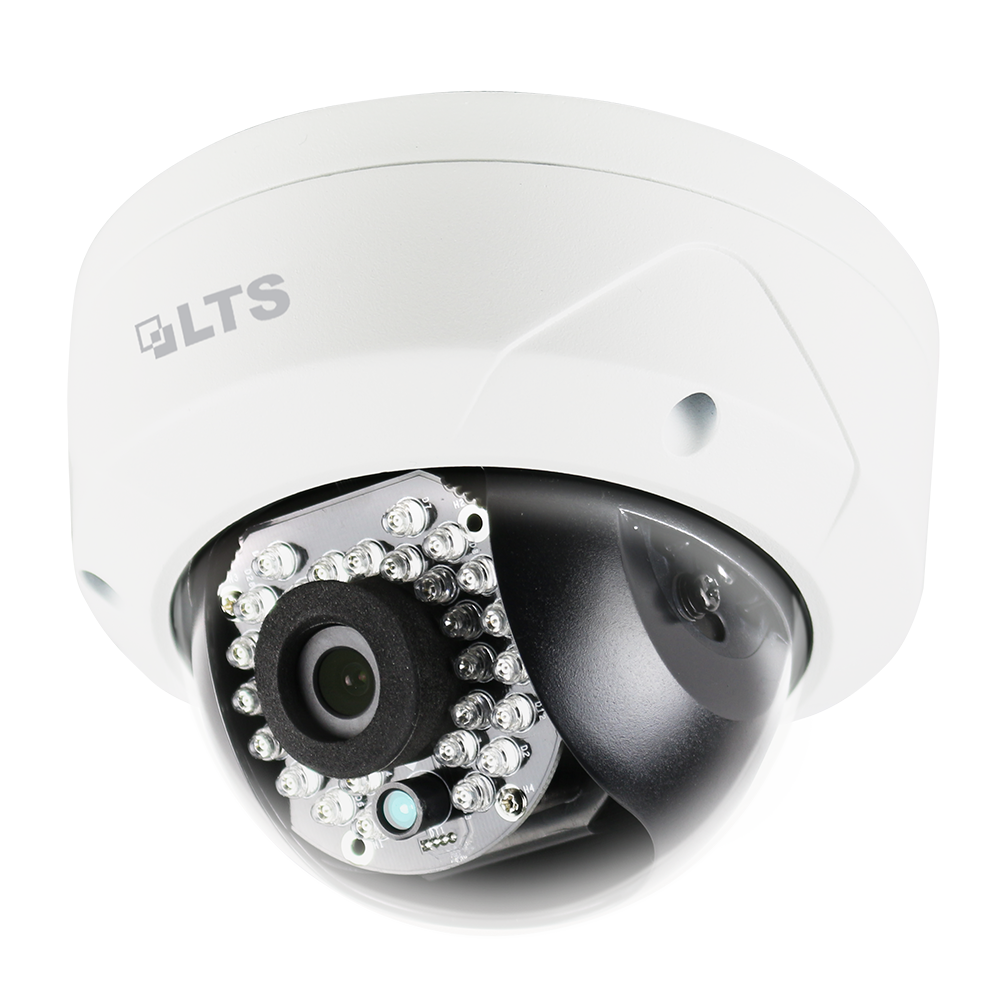

【LTS】 LTCMIP7422-M, Platinum Fixed Lens Dome IP Camera, 2MP, 4mm, SD card slot
