Camera
Image Sensor	1/2.8 " Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2,AGC ON),0.028Lux @ (F2.0, AGC ON)
Shutter Speed	1/3 s to 1/100, 000 s, support slow shutter
Lens	2.8 mm, horizontal FOV 114.5°, vertical FOV 62°, diagonal FOV 135.5°
Lens Mount	M12
Angle adjustment	Pan: 0° to 360°, tilt: 0°to 75°, rotation:0° to 360°
Day & Night	ICR cut filter
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Compression Standard
Video Compression	H.265+ / 265
H.264 codec profile	Main profile
Bit Rate	32 Kbps ~ 16 Mbps
Dual stream	Yes
Max. Resolution	1280 × 960
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch	Auto/Scheduled
Network
Network Storage	NAS (NFS,SMB/CIFS)
Alarm Trigger	Motion detection, video tampering alarm, illegal login
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Standard	ONVIF (PROFILE S, PROFILE G), ISAPI
General functionalities	Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
General
Working Temperature	-22 °F ~+122 °F(-30 °C ~ +50 °C ) Humidity 95% or less (non-condensing)
/Humidity
Power Supply	12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.4 A, Max: 5W; PoE: (802.3af, 37 V to 57V), 0.2 A to 0.13 A, Max: 6.5W
Ingress protection level	IP67
IR Range	Up to 100ft(30m)
Dimension	Φ 4.3"× 3.7" (Φ 110 × 93.2 mm)
Weight	0.8lb. (360 g)

Sign In For Price

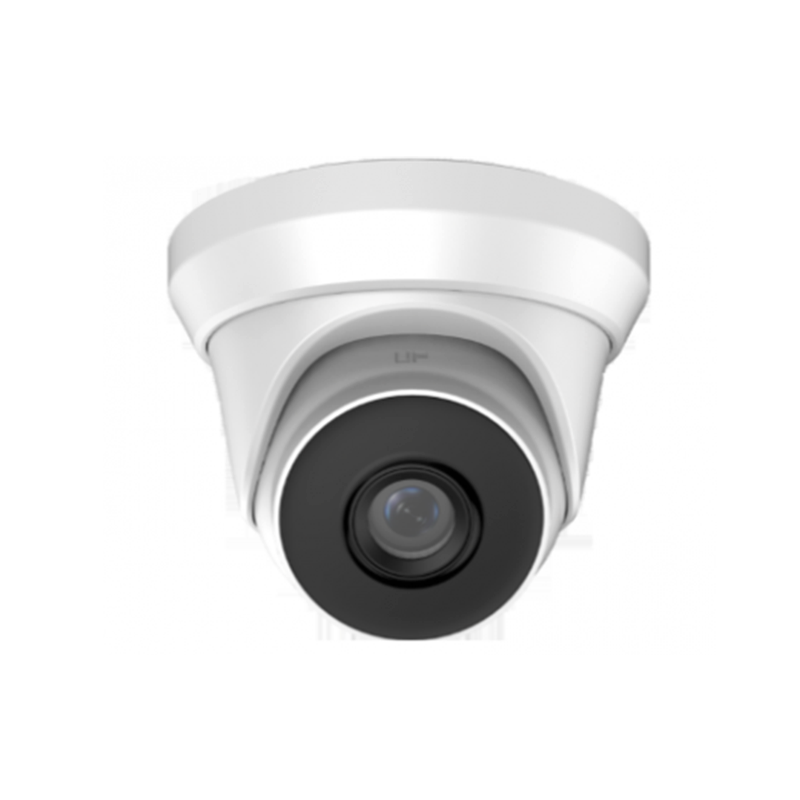

【LTS】 LTCMIP1022-28, Platinum Network Turrent IP Camera, 2MP, 2.8mm
