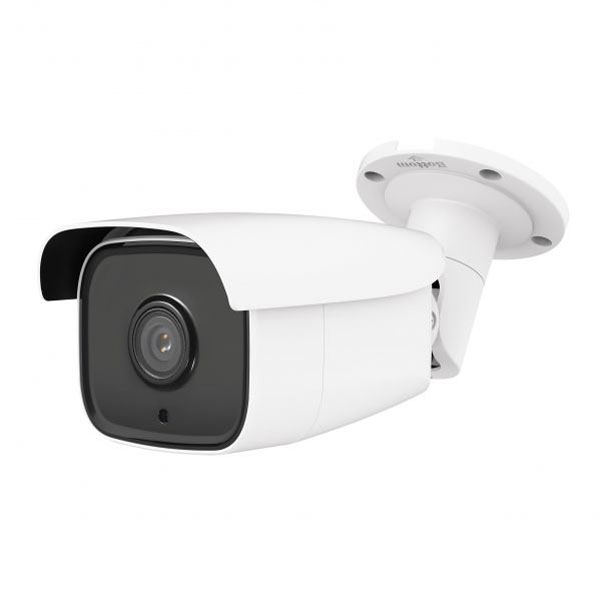

WH-CI3920
Camera
Image Sensor	1/3” progressive scan CMOS
Min. Illumination	0.01 Lux @(F1.2,AGC ON), 0 Lux with IR 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed	1/3s ~ 1/100,000s
Lens	4mm Angle of view: 80°
Lens mount	M12
Digital noise reduction	3D DNR
Wide dynamic range	Digital WDR
Day & Night	ICR
Compression standard
Video compression	H.264 / MJPEG
H.264 codec profile	Main profile
Bit rate	32 Kbps ~ 12 Mbps
Dual stream	Yes
Max. image resolution	1920 × 1080
Frame rate	60Hz: 30fps (1920 × 1080), 30fps (1280 x 960), 30fps (1280 x 720) 50Hz: 25fps (1920 × 1080), 25fps (1280 x 960), 25fps (1280 x 720)
Image settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
ROI	Support
BLC	Yes,zone optional
Network
Network storage	NAS
Alarm trigger	Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage full, Storage error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibility	ONVIF, PSIA, CGI, ISAPI
General functionalities	One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Interface
Communication interface	1 RJ45 10M / 100M ethernet port
General
Operating conditions	-22°F ~ 140°F(-30°C ~ 60°C )
Operating conditions	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 7.5W
Weather Proof Ratings	IP66
IR Range	164ft(50m)
Dimensions	Φ4.1”× 11.2” ( Φ104.8 × 285.2 mm )
Weight	2.7lbs(1200g)

Sign In For Price

【LTS】 WH-CI3920, IP BUL 2MP 1080P 4mm 2xMatrixiR:164ft MSDCslot IP66 DC/PoE
