Camera
Image Sensor	1/3” sensor
Min. Illumination	0.01 lux @F1.2, AGC on 0 lux with IR
Shutter Speed	1/25s ~ 1/100,000s
Lens	4.0 mm @F2.0
Lens	2048 × 1536: Angle of view: 70° 1920 × 1080:Angle of view: 79°
Lens Mount	M12
Day & Night	IR cut filter with auto switch
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Backlight compensation	Yes,zone configurable
Compression Standard
Video Compression	H.264 / MJPEG
H.264 codec profile	Main profile
Bit Rate	32 Kbps ~ 16 Mbps
Audio compression	G.711/G.726/MP2L2
Audio bit rate	64Kbps(G.711) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution	2048 × 1536
Frame Rate	60Hz: 20fps (2048 x 1536),30fps (1920 × 1080),30fps(1280 x 720) 50Hz: 20fps (2048 x 1536),25fps (1920 × 1080),25fps(1280 x 720)
Image Settings	Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser
ROI	Yes, up to 3 configurable areas
Network
Network Storage	Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 6 4GB. NAS
Alarm Trigger	Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect,IP address conflict, Storage exception
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System compatibility	ONVIF, PSIA, CGI, ISAPI
General functionalities	Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication Interface	1 RJ45 10 M / 100 M Ethernet interface
On-board Storage	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Alarm I/O	1/1
Wi-Fi parameters
Wi-Fi standard	IEEE802.11b, 802.11g, 802.11n Draft
Frequency range	2.4 GHz ~ 2.4835 GHz
Communication bandwidth	Support 20/40 MHz
Protocols	802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM
802.11g/n: OFDM	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Transmission range	Outdoor: 200m, Indoor: 50m(depend on environment)
Wireless Standards	IEEE802.11b, 802.11g, 802.11n Draft
General
Working Temperature /Humidity	-22 °F ~ 140 °F(-30 °C ~ 60 °C ) Humidity 95% or less (non-condensing)
Power Supply	DC12V±10% / PoE(802.3af)
Power Consumption	Max. 5W
PIR	Angle: 80°
PIR	Range: 33ft(10m)
IR Range	33ft(10m)
Dimension	2.60”×3.60” ×5.17”(66.0×91.5×131.3mm)
Weight	0.9lbs(400g)

Sign In For Price

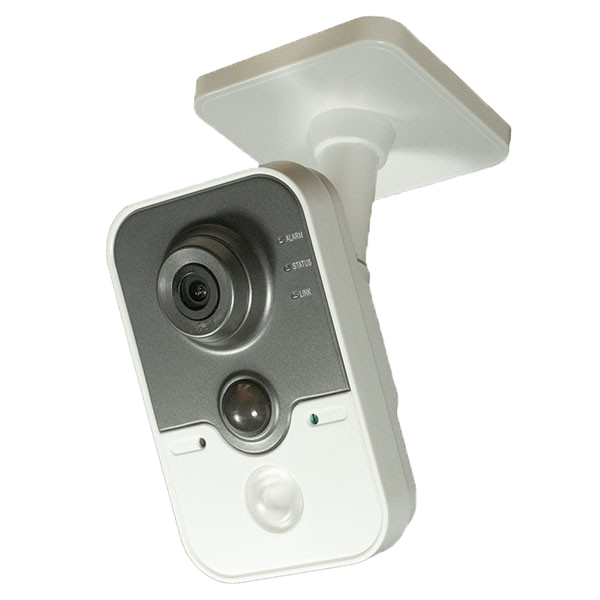

【LTS】 LTCMIP8932-W,Platinum HD Cube Network IP Camera,3.2MP,4mm,Wireless
