Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

0.0014 @ F1.0 (1/30 s, AGC ON), 0.002 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Focal length

4 mm

Focus

Fixed

Aperture

F1.0

FOV

4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 107.5°

Lens Mount

M16

Auto-Iris

DNR

3D DNR

Wide Dynamic Range

120dB

3-Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps


Max. Resolution

2560 × 1440

Main Stream

50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 24fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third stream

50Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)

60Hz: 1fps (1280 × 720, 640 × 480, 640 × 360, 352 × 288, 320 × 240)

Image Enhancement

BLC/3D DNR/HLC/Defog

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

ROI (Region of Interest)

Network

Network Storage

Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General Function

One-key reset, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Web Browser	IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
*Interface*
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage	Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
SVC	H.265 encoding and H.264 encoding support
*Smart Feature-set*
Behavior Analysis	Line crossing detection, intrusion detection
*General*
Operating Conditions	-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.5 A, max: 6 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max: 7.5 W
Visible Light Range	Warm white LEDs (3000K), up to 98ft(30m)
Protection Level	IP67
Material	Camera body: Front cover: plastic, back cover: metal Bottom base: plastic
Dimensions	Camera: Φ130 × 103.6 mm (Φ5.1″ × 4.1″)
Weight	Camera: 500 g (1.1 lb.)

Sign In For Price

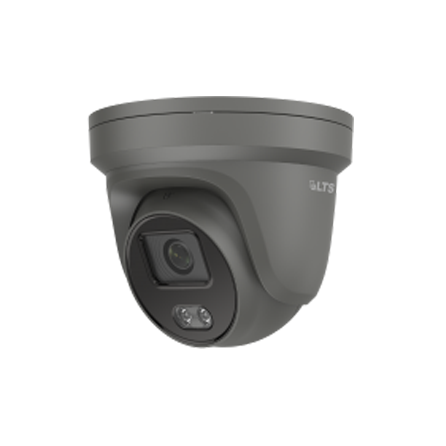

【LTS】 LTCMIP3C42WB-M, 4 MP Full Color Fixed Turret Network Camera
