System Overview

With upgraded H.265 encoding technology, Eco-savvy series brings high efficient video compression capability. It can save bandwidth and storage. Meanwhile, the series features starlight, smart IR technology and intelligent image analysis techniques. This series supports reminder function, meanwhile fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standard.

Functions

ePoE technology

The ePoE technology of LTS, designed internally, adopts advanced 2D- PAM3 coding modulation from physical layer, and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable media. Besides, it supports PoE and PoC power supply technology which has greatly simplified construction and wiring. LTS ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System (IVS)

IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera.

Protection(IP67, IK10, wide voltage)

The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), the camera is the choice for installation in even the most unforgiving environments.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265 + technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Technical Speciﬁcation
Camera
Image Sensor		1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels		3072(H)x2048(V)
RAM/ROM		512MB/32MB
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/3~1/100000s
Minimum Illumination		0.03Lux/F1.4 (Color,1/3s,30IRE) 0.3Lux/ F1.4 (Color,1/30s,30IRE) 0Lux/F1.4(IRon)
S/N Ratio		More than 50dB
IR Distance		Distance up to 50m (164ft)
IR On/Off Control		Auto/ Manual
IR LEDs		4
Lens
Lens Type		Motorized/ Auto Iris(DC)
Mount Type		Board-in
Focal Length		2.7mm~13.5mm
Max. Aperture		F1.4
Angle of View		H:91°~27° , V:58°~18°
Optical Zoom		5x
Focus Control		Motorized
Close Focus Distance		0.3m
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	79m(259ft)	32m(105ft)	16m(52ft)	8m(41ft)
	T	256m(840ft)	102m(334ft)	51m(167ft)	25m(84ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range		Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVS		Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions		Face Detection
Video
Compression	H.265+/H.265/H.264+/H.264
Streaming Capability	3 Streams
	6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240)
Resolution

	Main Stream: 6M(1~20fps)/4M(1~25/30fps)
Frame Rate	Sub Stream: D1(1~25/30fps)
	Third Stream: 720P(1~25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day/Night		Auto(ICR) / Color / B/W
BLC Mode		BLC / HLC / WDR
White Balance		Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control		Auto/Manual
Noise Reduction		3D DNR
Motion Detetion		Off / On (4 Zone, Rectangle)
Region of Interest		Off / On (4 Zone)
Electronic Image Stabilization (EIS)		N/A
Smart IR		Support
Defog		N/A
Digital Zoom		16x
Flip		0/°90/°180/°270°
Mirror		Off / On
Privacy Masking		Off / On (4 Area, Rectangle)
Audio
Compression		G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet		RJ-45 (10/100Base-T)
Protocol		HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability		ONVIF, PSIA, CGI
Streaming Method		Unicast / Multicast
Max. User Access		10 Users /20 Users
Edge Storage		NAS Local PC for instant recording Mirco SD card 128GB
Web Viewer		IE, Chrome, Firefox, Safari
Management Software		Smart PSS, DSS, Easy4ip
Smart Phone		IOS, Android
Certifications
Certifications		CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	1/1 channel In/Out
RS485	N/A
Alarm	2 channel In: 5mA 5VDC 1 channel Out: 300mA 12VDC
Electrical
Power Supply	DC12V, PoE (802.3af)(Class 0)
Power Consumption	<12.95W

Sign In For Price

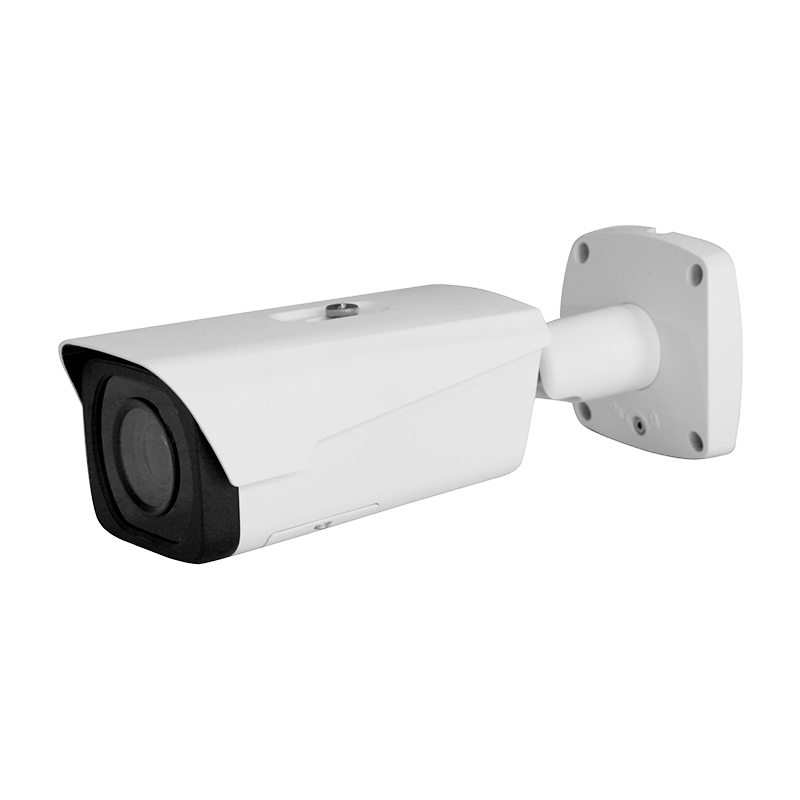

【LTS Sapphire】 LTDHIP9663W-SZ, IP Bullet 1/2.9” Motorized, 6MP, 2.7-12mm, WDR H.265 IR 50m, Micro SD Memory LTS Sapphire series
