Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination	CMIP182W-37:
	Color: Color: 0.109 Lux @ (F2.5, AGC ON)
	B/W: B/W: 0.022 Lux @ (F2.5, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night Electronic
Digital Noise Reduction 3D DNR
WDR 120dB
Lens
Focal Length	CMIP182W-37: 3.7 mm
Focus No
FOV	CMIP182W-37: 3.7 mm
	horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 90°
Lens Mount M12
Compression Standard
Video Compression H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection, region entrance detection, region exit detection,
unattended baggage detection, object removal detection
Exception Scene change detection, defocus detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream, sub-stream and third stream
Max. Resolution 1920 × 1080
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
	60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream	50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
	60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping No
Day/Night Switch Day/Night/Auto
Network
Network Storage Support NAS (NFS, SMB/CIFS)
Alarm Trigger Motion detection, video tampering, IP address conflict, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host	Up to 32 users
	3 levels: Administrator, Operator and User
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio 1 input (line in)
Alarm No
Video Output No
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage No
SVC No
Reset Button Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 20%, Φ 5.5 mm coaxial plug power
Power Consumption and
Current 12 VDC, 0.3 A, max. 3 W
Material Aluminum Alloy
Dimensions	CMIP182W-37: 31 mm × 31 mm × 26 mm (1.2" × 1.2" × 1")
Weight	With package: approx. 202 g (0.4 lb.)
	Camera: approx. 93 g (0.2 lb.)

Sign In For Price

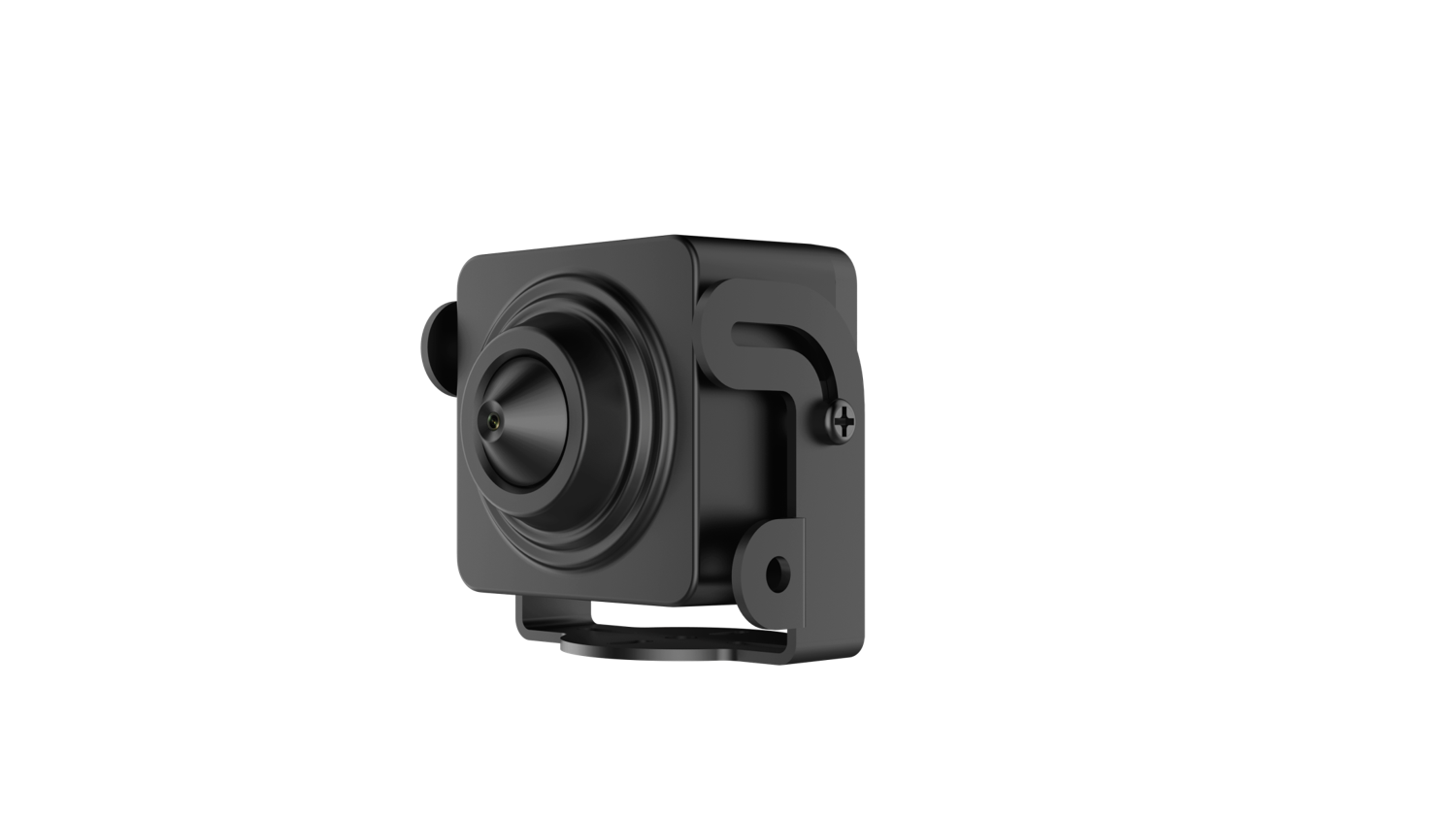

【LTS】 LTCMIP182W-37, Platinum Network Convert IP Camera, 2MP, 3.7mm, True WDR
