Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixel	1920(H) ×1080(V)
Min. Illumination	Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto / Manual
WDR	120dB
Digital Noise Reduction	3D DNR
Backlight compensation	BLC
Shutter Speed	1 ~ 1/30,000s
Day & Night	IR Cut Filter
Digital zoom	16X
Focus Mode	Auto / Semiautomatic / Manual
Privacy Mask	24 programmable privacy masks
Regional Exposure	Support
Regional Focus	Support
Rapid Focus	Support
Lens
Focal Length	4.8 mm to 120 mm, 25× optical
Zoom Speed	Approx. 4.8 s (optical lens, wide-tele)
Angle of View	Horizontal field of view: 58.4° to 2.7° (wide-tele)
	Vertical field of view: 33.8° to 1.5° (wide-tele)
	Diagonal field of view: 65.6° to 3.1° (wide-tele)
Min. Working Distance	10 ~1500mm (Wide-Tele)
Aperture Range	F1.2 ~ F2.8
Pan and Tilt
Pan / Tilt Range	Pan: 360° endless; Tilt: -10° ~ 90° (Auto Flip )
Pan / Tilt Speed	Pan manual speed: 0.1° ~ 210°/s, Pan preset speed: 280°/s
	Tilt manual speed: 0.1° ~ 150°/s, Tilt preset speed: 250°/s
Proportional Zoom	Support
Number of Preset	300
Patrol Scan	8 patrols, up to 32 presets per patrol
Pattern Scan	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning	Support
PTZ Position Display	Support
Scheduled Task	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Preset freezing	Support
Local Video and Audio
Network Interface	1 RJ45 10 M/100 M Ethernet, Hi-PoE
Audio input / putput	1-ch audio input (applicable microphone, plug-in power type), 2 to 2.4 V[p-p], 1 KΩ ± 10%, 1-ch audio output, line level, impedance: 600 Ω
Alarm Interface	7-ch alarm input/2-ch alarm output
Alarm Linkage	Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
BNC	1.0V [p-p]/75 Ω, NTSC (or PAL) composite
RS-485	Pelco-P, Pelco-D, self-adaptive
Network
Max. Image Resolution	1920×1080
Frame Rate	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
	50fps (1920 × 1080, 1280 × 960, 1280 × 720)
	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
	60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Image Compression	Main Stream: H.265+/H.265/H.264+/H.264
ROI encoding	Main stream, sub-stream, and third stream respectively support four fixed areas.
SVC	Support
Audio Compression	G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View	Up to 20
API	Open-ended, support ONVIF, ISAPI, and CGI, support Third-Party Management Platform
SD Memory Card	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator and Use
Security Measures	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Auto-Tracking	Support
Smart Features
Perimeter Protection	Intrusion, Line Crossing, Region Entrance, Region Exiting
	Support alarm triggering by specified target types (human and vehicle)
	Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
Event Detection	Face Detection, Audio Exception Detection
Smart Tracking	Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
Smart Record	ANR (Automatic Network Replenishment), Dual-VCA
IR
IR Distance	Up to 492ft(150 m)
Smart IR	Support
General
Working Temperature	-40°F to 149°F (-40°C ~ 65°C)
/Humidity	90% or less
Power Supply	24 VAC (Max. 60 W), Hi-PoE (Max. 50 W)
Protection Level	IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimension	Φ 9.65" × 14.72"(Φ 245 mm × 373.94 mm )
Weight	Approx. 13.23Ibs (6Kg)

Sign In For Price

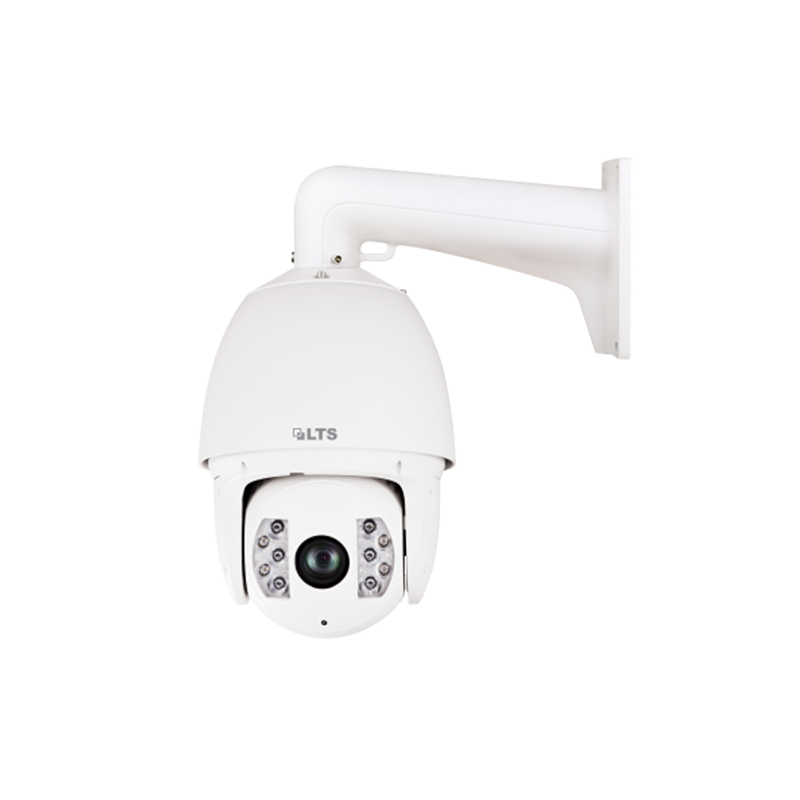

【LTS】 LTPTZIP762X25WIR, Platinum Network IR Speed Dome Camera, 2MP, 4.8-120mm, True WDR
