Camera
Image Sensor	1/3" Sensor
Min. Illumination	0.01 lux @F1.2, AGC ON, 0 lux with IR
Shutter Time	1/3s ~ 1/100,000s
Lens	4mm
	Angle of view: 79°
Lens Mount	M12
Day & Night	Auto switch
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Ange Adjustment	Pan: 0° - 355°, Tilt: 0° - 80°
Compression Standard
Video Compression	H.264 / MJPEG
H.264 Type	BaseLine Profile / Main Profile
Bit Rate	32 Kbps ~ 8Mbps
Dual Stream	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	60Hz: 30fps (1920 ×1080), 30fps (1280×960),30fps (1280×720)
	50Hz: 25fps (1920 ×1080),25fps (1280×960),25fps (1280×720)
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC	Yes, zone optional
ROI	Support
Network
Network Storage	Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB. NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis,Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General	One-key reset, Flash-prevention, dual stream, heartbeat, mirror
	, passwordprotection, privacy mask, watermark, IP address filtering, Anonymous access
Standard	ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet interface
General
Operating Conditions	14°F ~ 104 °F(-10 °C ~ 40°C ) humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10% , PoE (802.3af)
Power Consumption	Max. 4.5W
Dimension	Φ3.7”× 4.8”(Φ93.9×121.6mm)
Weight	0.4lbs(200g)

Sign In For Price

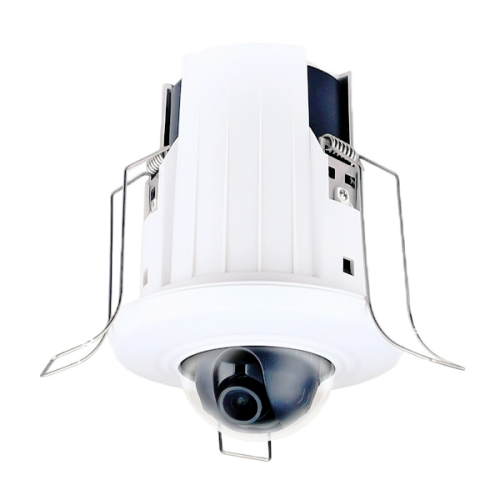

【LTS】 LTCMIP7122, Fixed Lens In-Ceiling IP Network Dome Camera, 2.1MP, 4mm
