Camera
Image Sensor	1/2.8” progressive scan CMOS
Min. Illumination	0.01Lux @(F1.2,AGC ON)
	0 Lux with IR
Shutter Speed	1/3s ~ 1/100,000s
Lens	4mm@F2.0
	Angle of view: 79°
Lens Mount	M12
Angle adjustment	Horizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360°
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Compression Standard
Video Compression	H.264 / MJPEG
Bit Rate	32 Kbps ~ 8 Mbps
Dual stream	Yes
Max. Resolution	1920 x 1080
Frame Rate	60 Hz: 30 fps (1920 × 1080), 30fps (1280 × 960), 30 fps (1280 x 720)
	50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 x 720
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable
	by client software or web browser
BLC	Yes, zone optional
ROI	Support
Network
Network Storage	NAS (Support NFS, SMB/CIFS)
Alarm Trigger	ntrusion detection, Line crossing detection, Motion detection, Dynamic
	analysis, Tampering alarm, Network disconnect , IP address conflict,
	Storage exception
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
	PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System Compatibility	ONVIF, PSIA, CGI, ISAPI
General functionalities	One-key reset, Flash-prevention, dual stream, heartbeat, mirror,
	password protection, privacy mask, watermark, IP address filtering, Anonymous access
Interface
Communication Interface	1 RJ45 10M / 100M ethernet port
General
Working Temperature	-22°F ~ 140°F(-30°C ~ 60°C ) humidity 95% or less (non-condensing)
/Humidity
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 7.5W
Ingress Protection Level	IP66
IR Range	About 65 to 100ft(20-30m)
Dimension	Φ5.0“× 3.8”(Φ126.7 x 97.2 mm)
Weight	1.3lb(570g)

Sign In For Price

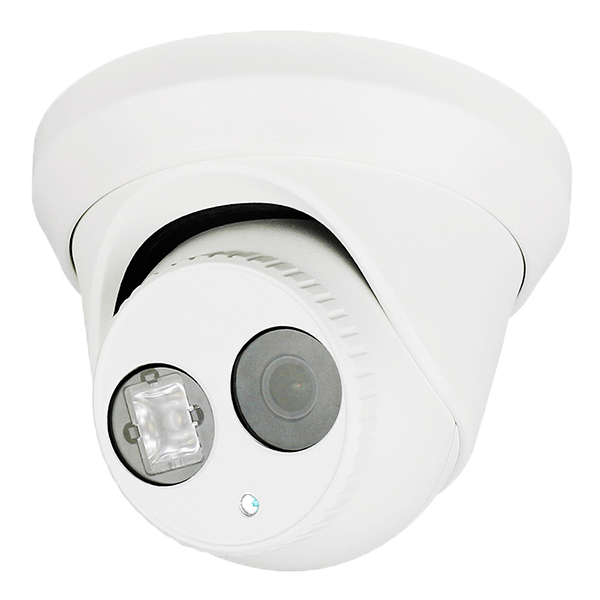

【LTS】 LTCMIP3022, Platinum HD Fixed Lens Turret IP Camera, 2.1MP, 4mm
