Camera
Image Sensor	1/2.9" Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Lens	2.8 mm: horizontal FOV:97°, vertical FOV: 63°, diagonal FOV: 120°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	120dB
Compression Standard
Video Compression	Main stream: H.26 5/H.264
	Sub stream: H.265/H.26 4/MJPEG
	Third stream: H.26 5/H.264
H.264 Type	Main Profile / High Profile
H.264 Zip+	Support
H.265	Main Profile
H.265+	Support
Video Bit Rate	32 Kbps ~ 16 Mbps
Max. Resolution	3072 × 2048
Frame Rate	50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	60Hz: 30fps (640 × 360, 352 × 240) 50Hz: 25fps (1280 ×720)
Third Stream	50Hz: 25fps (1280×720, 640×360, 352×288) / 352×288)
Behavior Analysis	Line crossing detection, intrusion detection
Face Detection	Yes
ROI	1 fixed region for main stream and sub-stream
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Network
Network Storage	Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Simultaneous View	Up to 6 Channels
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Reset	Yes
General
Working Temperature	-22 °F ~ 140°F (-30 °C ~ 60 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 25%, PoE (802.3af)
IR Range	Approx. 165ft (50 meters)
Weather Proof Ratings	IP67
Dimensions	Φ4.1″ × 11.8″ (Φ105 × 299.7 mm)
Weight	2.7lbs (1200 g)

Sign In For Price

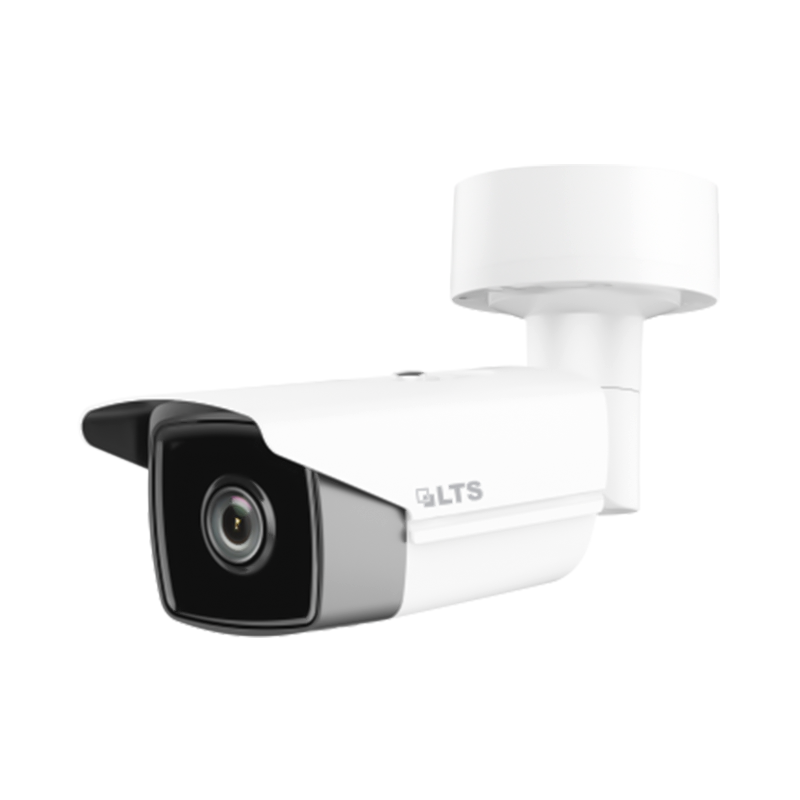

【LTS】 LTCMIP9362W-28M, Platinum Bullet Network IP Camera, 6MP, 2.8mm, True WDR, Matrix IR 2.0, SD card slot
