Camera
Image Sensor	1/3” sensor
Min. Illumination	0.1 lux@F1.4, AGC on 0 lux with IR
Shutter Speed	1/25s ~ 1/100,000s
Lens	2.8 ~ 12 mm @F1.2, angle of view: 98° ~ 27.2°
Lens Mount	Φ14
Day & Night	ICR
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Backlight compensation	Yes,zone configurable
Compression Standard
Video Compression	H.264 / MJPEG
H.264 compression profile	Main profile
Bit Rate	32 Kbps ~ 16 Mbps
Audio Compression	G.711/G.726
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.726)
Max. Resolution	2048 × 1536
Frame Rate	60Hz: 20fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720) 50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720)
Image Settings	Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage	NAS ( iSCSI optional)
Alarm Trigger	Motion detection.tampering alarm
Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos (SIP, SRTP, IPv6 optional)
System Compatibility	ONVIF, PSIA, CGI
General functionalities	Dual stream, user authentication, watermark
Interface
Communication Interface	1 RJ45 10M / 100M ethernet port
On-board Storage	Built-in Micro SD card slot, up to 64 GB
General
Working Temperature /Humidity	-30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing)
Power Supply	DC12V ± 10%, PoE (802.3af)
Power Consumption	Max. 5.5W(7.5W with ICR on)
Impact Protection	IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress Protection Level	IP66
IR Range	Up to 100ft(About 30m)
Dimension	Φ 139.9 x 114.9mm(Φ5.5"×4.5")
Weight	1000g(2.20lbs)

Sign In For Price

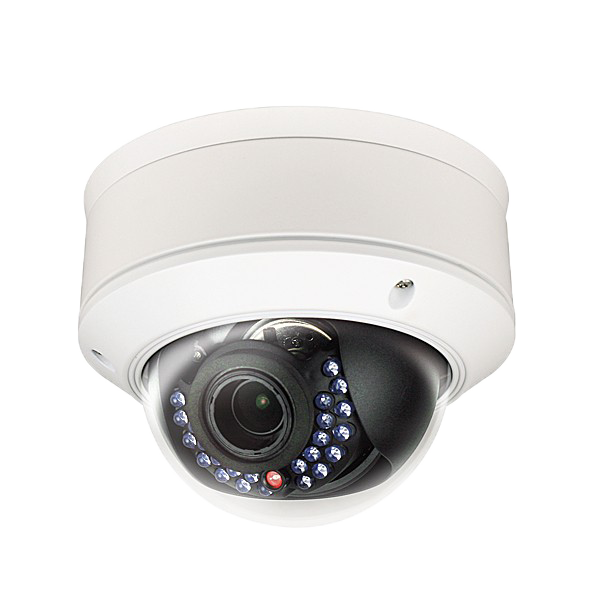

【LTS】 LTCMIP3233-S,Platinum Varifocal Vandal Dome IP Camera,3MP,2.8-12mm,Audio/Alarm
