Camera
Image Sensor	1/2.8”sensor
Min. Illumination	0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR 0.028 Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter Time	1/3s ~ 1/100,000s
Lens	2.8mm@F2.0 Angle of view: 106°
Lens Mount	M12
Angle Adjustment	Pan:0°- 355°, Tilt: 0° - 75°, Rotation: 0°-355°
Digital Noise Reduction	3D DNR
Wide Dynamic Range	Digital WDR
Day & Night	ICR
Compression Standard
Video Compression	H.264 / MJPEG
H.264 Codec Profile	Main profile
Bit Rate	32 Kbps ~ 8 Mbps
Dual Stream	Yes
Max. Image Resolution	1920 x 1080
Frame Rate	60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) 50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by cli ent software or web browser
BLC	Yes, zone optional
ROI	Support
Network
Network Storage	Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB. NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Intrusion detection, Line crossing detection, Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage full, Storage error
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System Compatibility	ONVIF, PSIA, CGI, ISAPI
Security	User Authentication, Watermark
Interface
Communication Interface	1 RJ45 10M / 100M ethernet port
General
Operating Conditions	-22°F ~ 140°F(-30°C ~ 60°C) humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 5W
Impact Protection	IEC60068-275Eh, 50J; EN50102, up to IK10
Ingress Protection	IP66
IR Distance	Up to 100ft (30m)
Dimensions	Φ4.4”x3.2”(Φ111.0 × 82.4 mm )
Weight	1.1lb(500g)

Sign In For Price

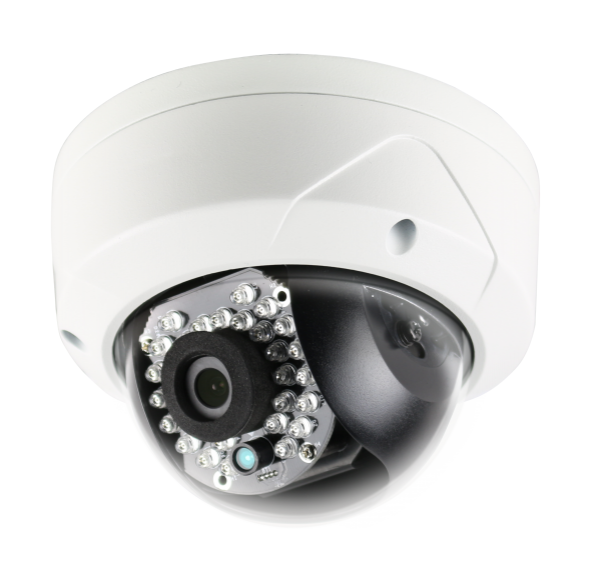

【LTS】 LTCMIP7422-28M,Platinum Fixed Lens Dome IP Camera,2MP,2.8mm,SD card slot
