Video/Audio Input
Video/Audio Input	H.265+/H.265/H.264 Zip+/H.264
Video Input	8-CH
	BNC interface (1.0 Vp-p, 75 Ω), supporting coaxition
Supported HDTVI input	8MP ,5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720 p25
Supported AHD input	1080p25, 1080p30, 720p25, 720p30
CVBS input	Support
IP Video Input	4CH, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression	G.711u
Audio input	4CH
Video/Audio Output
HDMI/ VGA output	VGA: 1 -c h , 192 0 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60H z, 1024 × 768/60 Hz
	HDMI: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz,
Encoding resolution	8MP/5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
CVBS output	1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576,NTSC: 704 × 480
Frame rate	Main stream: 8MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/@25fps(P)/30fps(N)
	Sub-stream: WD1/4CIF/CIF@25fps (P)/30 fps (N)
Video bit rate	32 Kbps -10 Mbps
Audio output	1-ch, RCA (Linear, 1 kΩ)
Audio bit rate	64 Kbps
Dual- stream	Support
Stream type	Video, Video & Audio
Synchronous playback	8ch
Network
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk
SATA	2 SATA
Capacity	Up to 8TB capacity for each disk
External Interface
Network Interface	1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Serial Interface	1; RS-485 serial interface, half-duplex
USB Port	Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out	8 In/4 Out
General
Power Supply	DC 12V
Consumption	≤ 20W
Working Temperature	-10 °C ~ +55 °C(14°F - 131°F)
Working Humidity	10% - 90%
Chassis	1U chassis
Dimension	380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch)
Weight	≤2Kg (4. 4lb)

Sign In For Price

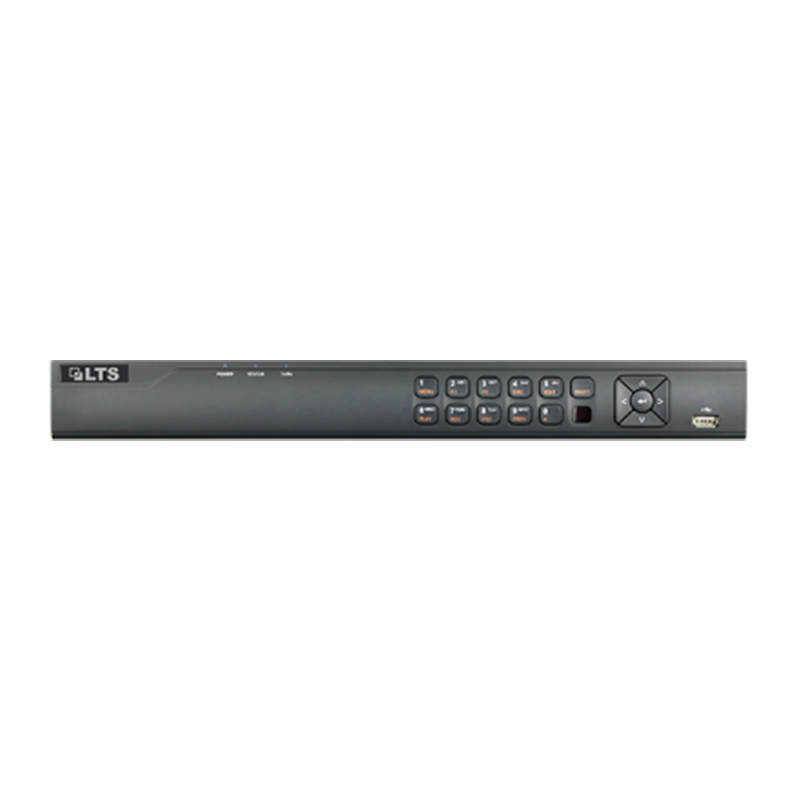

【LTS】 LTN8708K-HT, Platinum, Advanced Level 8 Channel Hybrid NVR, 1U, 16TB
