Camera
Image Sensor	8.29 megapixel progressive scan CMOS
Signal System	PAL/NTSC
	TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
	CVI: 8MP@12.5fps, 8MP@15fps AHD: 5MP@20fps
Frame Rate	CVBS: 960H P/N
Resolution	3840 (H) × 2160 (V)
Min. Illumination	Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1/50,000 s
	NTSC: 1/15 s to 1/50,000 s
Lens	3.6 mm fixed lens
Horizontal Field of View	79° (3.6 mm)
Lens Mount	M16
Day & Night	IR cut filter
Angle Adjustment (Bracket)	Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Synchronization	Internal synchronization
DWDR (Digital Wide Dynamic Range)	105 dB
Menu
AGC	Yes
Day/Night Mode	Auto/Color/BW (Black and White)
White Balance	Auto/Manual
BLC (Backlight Compensation)	Yes
Language	English
Functions	Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output	1 HD analog output
Switch Button	TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply	12 VDC ±25%
Power Consumption	Max. 5.3 W
Protection Level	IP67, IK10
Material	Metal
IR Range	Up to 98ft(30 m)
Communication	Up the coax, TVI output
Dimensions	Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2" )
Weight	Approx. 495 g (1.09 lb.)

Sign In For Price

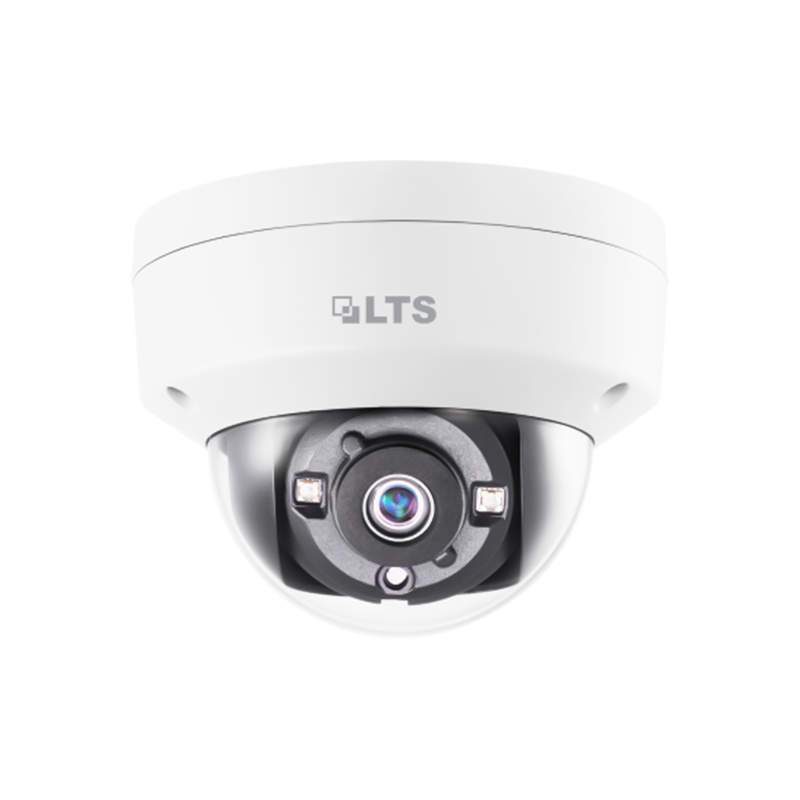

【LTS】 LTCMHD7382-F, EXIR, 20m IR, Dome,8MP,Outdoor Vandal Proof Dome, ICR
