Camera
Image Sensor	2 MP CMOS image sensor
Resolution	1920 (H) × 1080 (V)
	PAL: 1080p@25fps NTSC: 1080p@30fps
Frame Rate
Min. illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	PAL: 1/25 s to 1/50, 000 s
	NTSC: 1/30 s to 1/50, 000 s
Slow Shutter	Max. 16x
Lens	3.6 mm fixed lens
Horizontal Field of View	83.6° (3.6 mm)
Lens Mount	M16
Day & Night	Color
Angle Adjustment	Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Synchronization	Internal synchronization
WDR (Wide Dynamic Range)	120 dB
Menu
AGC	Yes
White Balance	Auto/Manual
BLC (Backlight Compensation)	Yes
Privacy Mask	4 programmable privacy masks
Motion Detection	4 programmable areas
WDR	Yes
Functions	Brightness, Sharpness, 3D DNR, Mirror, Smart light
Interface
Video Output	1 HD analog output
Switch Button	TVI/AHD/CVI/CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply	12 VDC ±25%
Power Consumption	Max. 3 W
Protection Level	IP67
Material	Main Body: Metal, Mounting Base: Plastic
White Light	Up to 66ft(20 m)
Communication	Up the coax, TVI output
Dimensions	Ø 109.82 mm × 85.56 mm ( Ø 4.32" × 3.37")
Weight	Approx. 336 g (0.74 lb.)

Sign In For Price

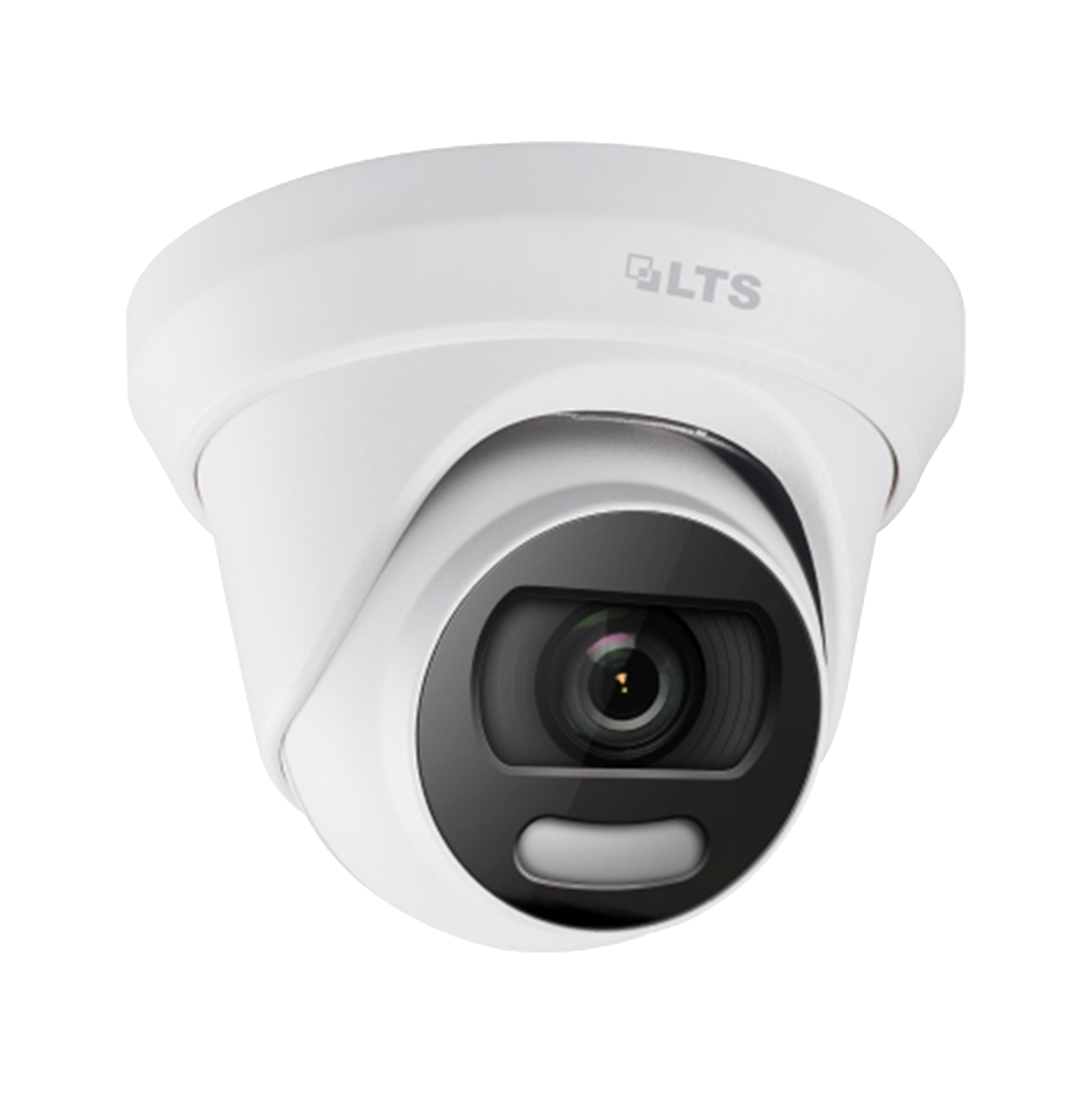

【LTS】 LTCMHT1722W-CF, Platinum HD-TVI Turret Camera, 2.1MP, 3.6mm, True WDR, Color 24/7
