Video / Audio input
Video compression	H.264
HD-TVI video input	8ch
Video input interface	BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adapive
IP input	2ch(1080p@30fps)
Audio compression	G.711A
Audio input	1-ch, RCA(2.0 Vp-p, 1 kΩ)
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI / VGA output	1920 x 1080,1280 x 1024, 1280 x 720, 1024 x 768/60 Hz
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Encoding resolution	Main stream: 1080P(non-real-time) / 720P / WD1 / 4CIF Sub-stream: CIF / QCIF
Frame rate	Main stream: 1fps ~ Real time frame rate Sub-stream: 1fps ~ Real time frame rate
Video bit rate	1280 Kbps-7168 Mbps
Audio output	1-ch, RCA (Linear, 1 kΩ)
Audio bit rate	64 Kbp
Dual-stream	Support
Stream type	Video, Video & Audio
Synchronous playback	8-ch
Playback resolution	1080P / 720P / WD1 / 4CIF / CIF / QCIF
Network
Remote connections	10
Network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA	1 SATA interfaces
Capacity	Up to 4TB capacity for each disk
External interface
Network interface	10M / 100M /1000M
Serial interface	1; standard RS-485 serial interface, half-duplex
USB port	2 × USB2.0
Alarm in/out	8/4
General
Power supply	DC 12V
Consumption	≤ 10 W
Working temperature	-0 °C ~ +55 °C(32°F - 131°F)
Working humidity	10% ~ 90%
Dimension	12.6 × 9.6 × 2.0" 320 ×245 × 50mm
Weight (without hard disk)	≤ 3.3 lb (1.5Kg)

Sign In For Price

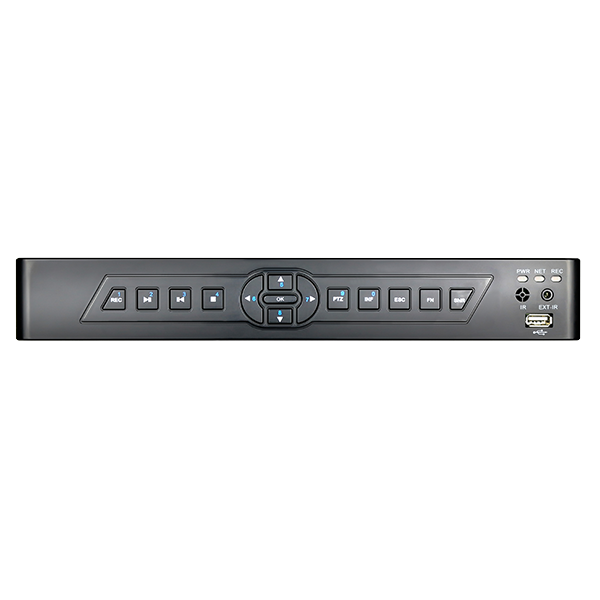

【LTS】 LTD4108T-FA, Platinum X Professional Level 8 Channel HD-TVI DVR, 1U, SATA up to 4TB, No Pre-Installed Storage
