#666666">CameraImage Sensor 1 / 3”SensorEffective Pixel1490KHorizontal Resolution950TVLSignal SystemPAL / NTSCMin. IlluminationColor: 0.2Lux@( F1.6,AGC ON)
B / W: 0.02Lux@( F1.6,AGC ON)White BalanceAuto / Manual / ATW / Indoor / OutdoorAGCAuto / ManualS / N Ratio≥ 50dB3D DNRSupportDigital WDRSupportEISSupportBacklight compensationSupportShutter Time1-1/10,000sDay & NightIR Cut FilterDigital Zoom16XPrivacy Mask8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screenFocus ModeAuto / Semiautomatic / ManualLensFocal Length4-92mm, 23XZoom SpeedApprox.4.0s(Optical Wide-Tele)Angle of View49-2.2 degree(Wide-Tele)Min. Working Distance10-1000mm (Wide-Tele)Aperture RangeF1.6-F3.7Pan and TiltPan / Tilt RangePan: 360° endless; Tilt: -15° ~ 90° (Auto Flip )Pan / Tilt SpeedPan Manual Speed: 0.1° ~160°/s, Pan Preset Speed: 240°/s
Tilt Manual Speed: 0.1° ~120°/s, Tilt Preset Speed: 200°/sProportional ZoomRotation speed can be adjusted automatically according to zoom multiplesNumber of Preset256Patrol8 patrols, up to 32 presets per patrolPattern4 patterns, with the total recording time not less than 10 minutesPower-off MemorySupportPark ActionPreset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scanPTZ Position DisplayOn / OffPreset FreezingSupportScheduled TaskPreset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scanRS-485 communication
diagnosisSupportInfraredIR Distance394ft(120m)IR Intensity Automatically adjusted, depending on the zoom ratioInput/ OutputMonitor Output1 HD TVI output , (1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC)RS-485 InterfaceHalf-duplex mode, Pelco-P, Pelco-D protocolUTC functionSelf-adaptive PELCO_CGeneralMenu LanguageEnglish, ChinesePower 24VAC; Max. 20W (Heater On), Max. 12W(Heater Off); Working Temperature-22°F-149°F(-30 °C-65°C)
90% or lessProtection LevelIP66 standard
TVS 4,000V lightning protection, surge protection and voltage transient protectionDimension Φ8.66”×13.91”(Φ220×353.4mm)Weight (approx.)12.13Ibs(5.5kg)

Sign In For Price

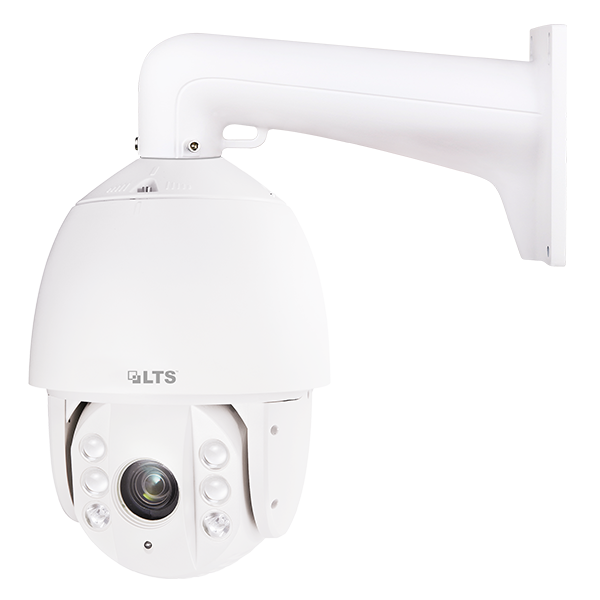

【LTS】 LTPTZH773X23IR,Platinum HD-TVI PTZ High Speed Dome Camera,1.3MP,4-92mm,23xOptical Zoom
