Camera
Image Sensor	1 / 3”Sensor
Effective Pixel	1400K
Max. Image Resolution	1280×720
Resolution	60Hz: 60fps(1280×720), 30fps(1280×720) 50Hz: 50fps(1280×720), 25fps(1280×720)
Min. Illumination	Color: 0.05Lux@( F1.6,AGC ON) B/W: 0.01Lux@( F1.6,AGC ON)
White Balance	Auto / Manual / ATW / Indoor / Outdoor
AGC	Auto / Manual
S / N Ratio	≥ 50dB
3D DNR	Support
Digital WDR	Support
EIS	Support
Backlight Compensation	Support
Shutter Time	1-1/10,000s
Day & Night	IR Cut Filter
Digital Zoom	16X
Privacy Mask	8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus Mode	Auto / Semiautomatic / Manual
Lens
Focal Length	4-92mm, 23X
Zoom Speed	Approx.3s(Optical Wide-Tele)
Angle of View	49-2.2 degree(Wide-Tele)
Min. Working Distance	10-1000mm (Wide-Tele)
Aperture Range	F1.6-F3.7
Pan and Tilt
Pan / Tilt Range	Pan: 360° endless
Pan / Tilt Speed	Pan Manual Speed: 0.1° ~160°/s, Pan Preset Speed: 160°/s Tilt Manual Speed: 0.1° ~120°/s, Tilt Preset Speed: 120°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	256
Patrol	8 patrols, up to 32 presets per patrol
Pattern	4 patterns, with the total recording time not less than 10 minutes
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display	On / Off
Preset Freezing	Support
Scheduled Task	Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication diagnosis	Support
Input/ Output
Monitor Output	1 HD TVI output , (1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC)
RS-485 Interface	Half-duplex mode, Pelco-P, Pelco-D protocol
UTC function	Self-adaptive PELCO_C
General
Menu Language	English
Power	24 VAC ,Max.12W
Working Temperature	14°F-122°F(-10°C-50°C) 90% or less
Impact Protection	IK08
Dimension	Φ6.50”×6.61”(Φ165×168mm)
Weight (approx.)	4.41Ibs (2Kg)

Sign In For Price

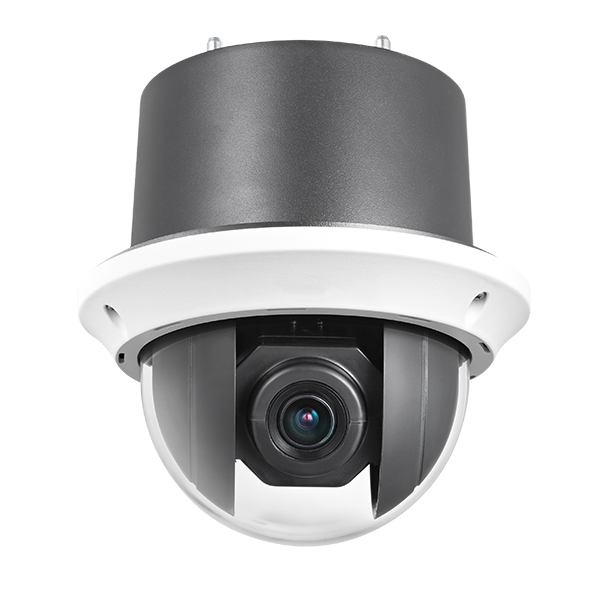

【LTS】 LTPTZH213X23-C,PTZ High Speed Dome HD-TVI Camera,1.3MP,4-92mm,23xOptical Zoom,In Ceiling
