Camera
Image Sensor	1/3"Sensor
Signal System	NTSC / PAL(Euro Version)
Effective Pixels	1920(H)×1080(V)
Min. Illumination	0.014 Lux @ (AGC ON),0 Lux with IR
Shutter Speed	NTSC: 1/30 ~ 1/50,000
	PAL: 1/25 ~ 1/50,000
Lens	2.8-12mm
Day & Night	ICR
Synchronization	Internal synchronization
Video Frame Rate	NTSC:1080p@30fps/PAL:1080p@25fps
HD Video Output	1 CVBS Output, 1 HD TVI HD Output
S/N Ratio	More than 52dB
Menu
Scene	Indoor, Outdoor, Indoor1, LOW-LIGHT
Camera ID	On / off (15 characters, position programmable)
AGC	Support
D / N Mode	Color / BW / EXT
White Balance	ATW, AWC-SET, Indoor, Outdoor, Manual
Privacy Mask	On/Off,maximum 8 zones
Motion Detection	On / Off, maximum 4 zones
BLC	Support
Anti-flicker	On / off
Language	English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish,Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
Functions	Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
General
Working Temperature	-4°F - 140°F(-20 °C - 60 °C )
/Humidity	Humidity 90% or less (non-condensing)
Power Supply	DC 12V, AC 24V
Power Consumption	Max.6.5W
Weather Proof Ratings	IP66
IR Range	Up to 131ft
Dimension	φ5.7'' × 4.9'' ( φ145.3 x 124.2mm)
Weight	2.0lb(880g)

Sign In For Price

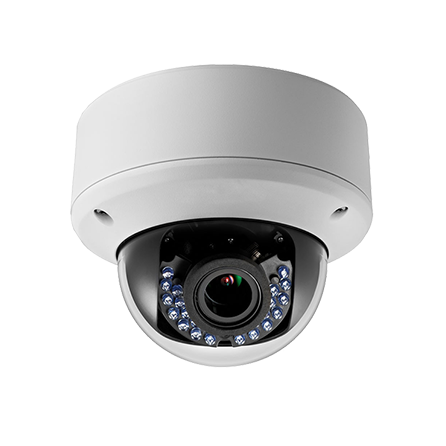

【LTS】 LTCMHD3423DW, Platinum HD-TVI Vandal Proof Dome Camera, 2.1MP, 2.8-12mm, True WDR, Dual Voltage
