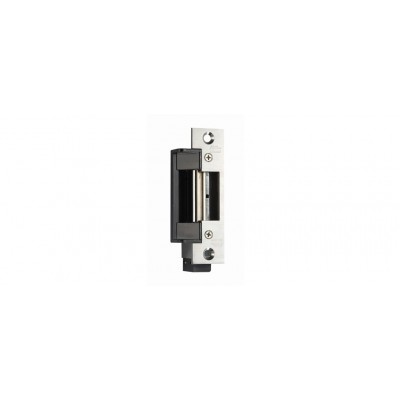

【Alarm Controls】 LTK-AES-100,Alarm Controls Strike UL Listed Grade 1 Two Faceplates

  • BHMA Grade 1
  • UL 1034 Burglary Resistant, 1500 lb. static strength
  • Static strength 70 ft-lbs. Dynamic strength endurance rating 500,000 UL tested,1,500,000 factory tested
  • Strike depth 1-1/2"
  • Field selectable, fail safe/fail secure
  • Dual voltage 12/24 VAC or VDC, continuous duty operation on DC
  • Fully reversible for right or left hand doors
  • Mounting kit includes two 4-7/8" stainless steel face plates (one round corner and one square corner)
  • Current draw 12 VAC 130mA, 24 VAC 70mA
  • Current draw 12 VDC 210mA, 24 VDC 105mA

  • Electrical:  Dual voltage
