LTD7204A-HV	LTD7208A-HV	LTD7216A-HV
Video / Audio input
Video compression	H.264
Video input	4CH Analog+1CH IP@720P	8 CH Analog+2CH IP@720P	16CH Analog+2CH IP@720P
Video input interface	BNC (1.0 Vp-p, 75 Ω), NTSC / PAL self-adaptive
Audio compression	G.711u
Audio input	1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)
Video / Audio output
HDMI/VGA output	1-ch, resolution: 1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: NTSC: 704 × 480,PAL: 704 × 576
Encoding resolution	WD1 / 4CIF / 2CIF / CIF / QCIF
Frame rate	WD1 / 4CIF / 2CIF @15 fps(N); CIF / QCIF @ /30 fps (N)	WD1 / 4CIF / 2CIF @ 15 fps; CIF / QCIF @30 fps (N)	WD1 @ 8 fps; 4CIF / 2CIF @ 10 fps; CIF / QCIF @ 30 fps (N)
Video bit rate	32Kbps~3072Kbps,or use defined(Max.3072Kbps)
Audio output	1-ch, RCA (Linear, 1 kΩ)
Audio bit rate	64 Kbps
Dual-stream	Support; Sub-stream: @ CIF / QCIF
Stream type	Video, Video & Audio
Synchronous playback	4-ch	8-ch	16-ch
Hard disk
SATA	1 SATA interfaces
Capacity	Up to 4TB capacity
External interface
Network interface	1, RJ45 10M / 100M Ethernet interface
Serial interface	1 RS-485 interface, half-duplex
USB interface	2, USB2.0
General
Power supply	12 VDC
Power Consumption	≤ 10 W	≤ 10 W	≤ 15 W
Working temperature	-10 °C ~ +55 °C(14°F~131°F)
Working humidity	10% ~ 90%
Chassis	Standalone 1U chassis
Dimension	315 × 230 × 45 mm(12.4”×9.1”×1.8”)
Weight	≤ 2kg(4.4lb) (without hard disk or DVD-R/W)

Sign In For Price

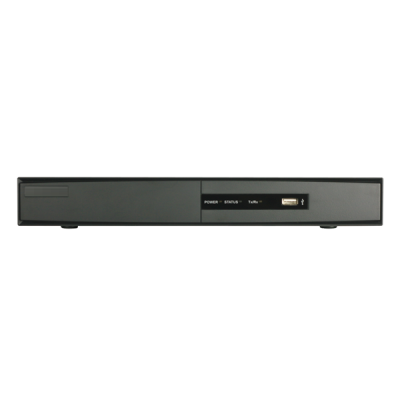

【LTS】 LTD7204A-HV, H264 RealTime Hybrid DVR, 4CH, 1U, Max Storage Up to 4TB, No Pre-installed HDD
