Video / Audio input
Video compression	H.265+/H.265/H.264 Zip+/H.264
HD-TVI video input	32 CH
HDTVI input	8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input	5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input	4MP, 1080p25, 1080p30, 720p25, 720p30
Audio compression	G.711u
Audio input	16-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio output
HDMI/VGA output	HDMI1/VGA: 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
	HDMI2: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz,
	1280 × 720/60Hz, 1024 × 768/60 Hz
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Frame rate	Main stream: 8 MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p@25fps(P)/30fps(N)
	Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate	32 Kbps-10 Mbps
Audio output	2-ch, RCA (Linear, 1KΩ)
Audio bit rate	64 Kbps
Dual-stream	Support
Stream type	Video, Video & Audio
Synchronous playback	16 CH
Network
Remote connection	128
Network protocols	TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, IP Portal, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA	8 SATA
Capacity	Up to 8TB capacity for each disk
External interface
Network interface	2, RJ45 10M/100M/1000Mself-adaptive Ethernet interface
Serial interface	RS-232, RS-485 (full-duplex), Keyboard
USB port	Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm in / out	16 In/8 Out
General
Power supply	AC 100 to 240V
Power Consumption	≤ 74 W
Working temperature	-10 °C~+55°C(14°F ~ 131 °F)
Working humidity	10% ~ 90%
Dimension	442 × 470 × 90 mm (17.4 × 18.5 × 3.5 inch)
Weight	≤10 kg (22.0 lb)

Sign In For Price

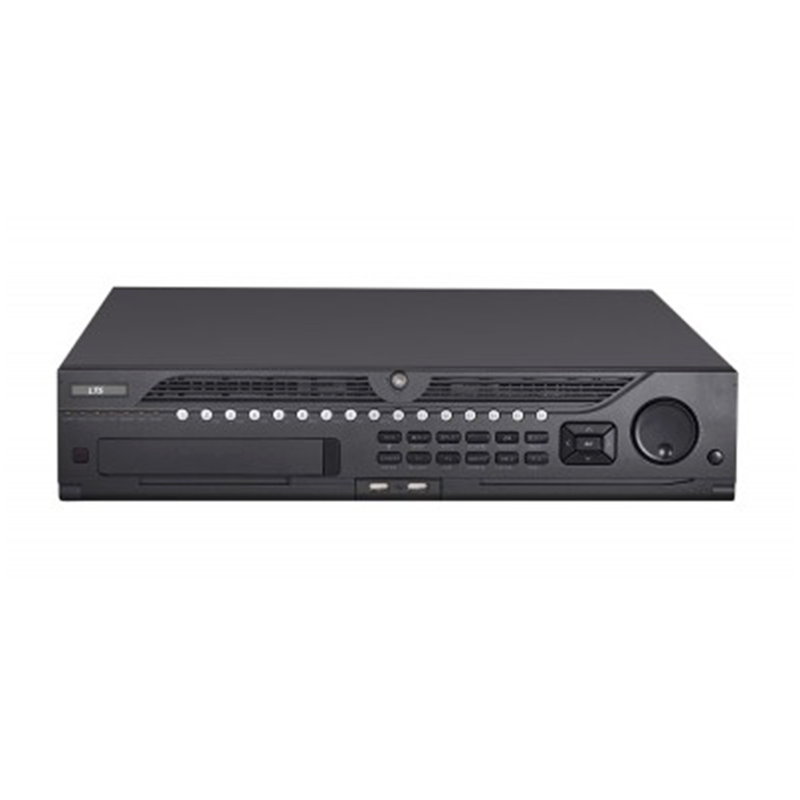

【LTS】 LTD9232K-ST, Platinum Enterprise Level 32 Channel 4K DVR, 2U, SATA up to 64TB, No Pre-Installed Storage
