Camera
Image Sensor	1/2.5" Progressive Scan CMOS
Min. Illumination	0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	4mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95°
Lens Mount	M12
Day & Night	IR cut filter
DNR	3D DNR
Wide Dynamic Range	True WDR 120dB
Angle Adjustment	Pan:0° ~ 360°, Tilt: 0° ~ 75°, Rotation: 0° ~ 360°
Compression Standard
Video Compression	Main stream: H.265/ H.264
	Sub stream: H.265/H.264/ MJPEG
	Third stream: H.265/ H.264
H.265 Type	Main Profile
Video Bit Rate	32 Kbps ~ 16 Mbps
Dual Stream	Support
Max. Resolution	3840 × 2160
Main Stream	50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1280×720, 640×360, 352×288)
	60Hz: 30fps (1280×720, 640×360, 352×240)
Behavior Analysis	Line crossing detection, intrusion detection
Others	Saturation, Brightness, Contrast adjustable by client software or web browser, Mirror, BLC, ROI, Dual Stream, Anti-Flicker, Privacy Mask
Network
Network Storage	Support microSD/SDHC/SDXC card (128GB), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion Detection, Tampering Alarm, Intrusion Detection, Line Crossing Detection, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	Password Protection, IP Address Filtering, Anonymous Access, Watermark
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Self Adaptive Ethernet port
Reset	Yes
General
Working Temperature	-22 °F ~ 140 °F (-30 °C ~ 60 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC12 V ± 25%, Φ5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.5A, max. 6W PoE (802.3af, 36V to 57V), 0.3A to 0.2A, max. 7.5W
IR Range	Up to 100ft
Weather Proof Ratings	IP67
Dimensions	5.01″ × 3.78″ (Φ 127.3 × 95.9 mm)
Weight	1.4 lb. (620 g)

Sign In For Price

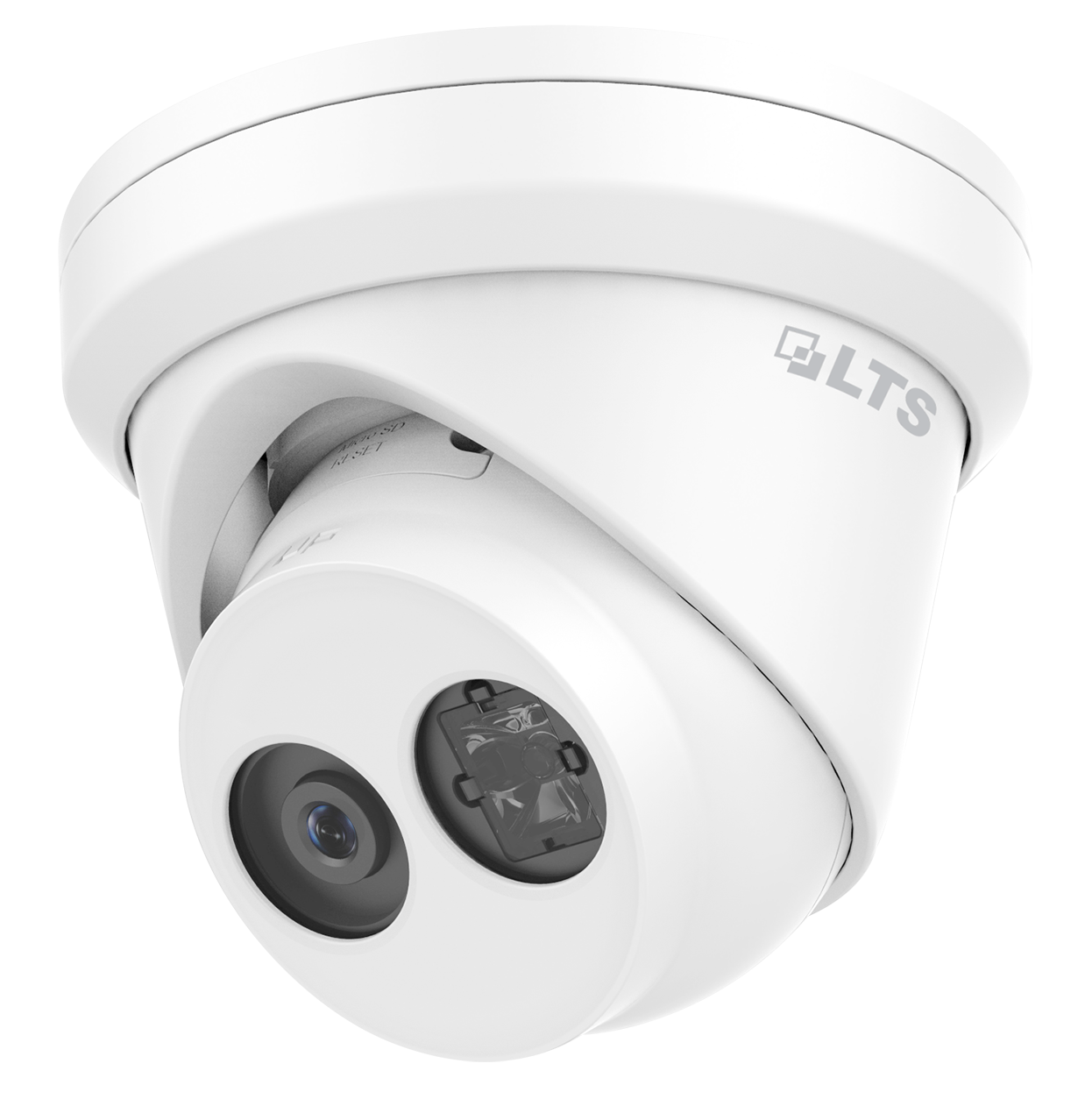

【LTS】 LTCMIP3382NW-M, Platinum, Turret, Network IP Camera, 4K/8MP, 4mm, True WDR, Matrix IR 2.0
