Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/10,000 s
Lens	2.8 mm to 12 mm @F1.4, horizontal field of view: 98° to 30°
Lens Mount	Φ 14
Day & Night	IR cut filter with auto switch
DNR	3D DNR
Wide Dynamic Range	120dB
Angle Adjustment	Pan: 0° to 360°; Tilt: 0°to 65°; Rotation:0° to 360°
Compression Standard
Video Compression	Main stream: H.264 Zip+ /H.264 Sub stream: H .264/MJPEG
H.264 Type	Main Profile / High Profile
Video Bit Rate	32 Kbps ~ 16 Mbps
Max. Resolution	2688×1520
Main Stream	60Hz: 20 fps (2688 × 1520), 20fps (2304 × 1296), 30 fps (1920 × 1080, 1280 ×720)
	50Hz: 20 fps (2688 × 1520), 20fps (2304 × 1296), 25 fps (1920 × 1080, 1280 ×720)
Sub Stream	60Hz: 30fps (640 × 360, 352 × 240) / 50Hz: 25fps (640 × 360, 352 × 288)
Image Setting	Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser or client software
BLC	Support, zone configurable
Others	Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage	NAS (NFS,SMB/CIFS)
Alarm Trigger	Motion detection
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General	One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter
Standard	ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M/100M Ethernet port
Reset	Yes
General
Working Temperature	-22 °F ~ 140 °F (-30 °C ~ 60 °C)
/Humidity	Humidity 95% or less (non-condensing)
Power Supply	DC12V ± 25%, PoE (802.3af)
Power Consumption	Max. 8.5W/wwW (PoE)
IR Range	66ft to 100ft
Weather Proof Ratings	IP67
Dimensions	Φ 5.14″ × 4.03″ (Φ 130.5 × 102.4 mm)
Weight	1.07lb. (485 g)

Sign In For Price

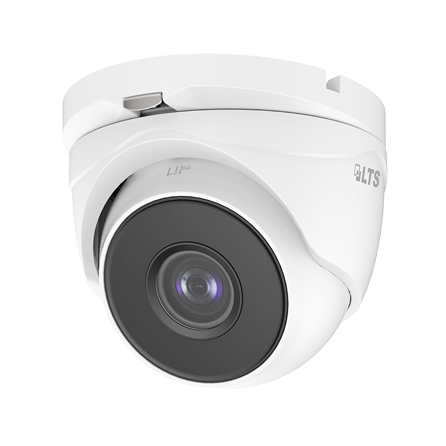

【LTS】 LTCMIP1043W-MZ, Platinum Matrix Varifocal Turret Network IP Camera, 4MP, 2.8 - 12mm, True WDR, SD card slot
